Msi   Opera Simulcast 031

MSI Custom Hi Sonic Speaker Support System

Specialty Items

$ Call for Price

CLICK HERE FOR MORE INFORMATION: MSI HI SONIC SPEAKER SUPPORT SYSTEM

Digico SD5
New Item

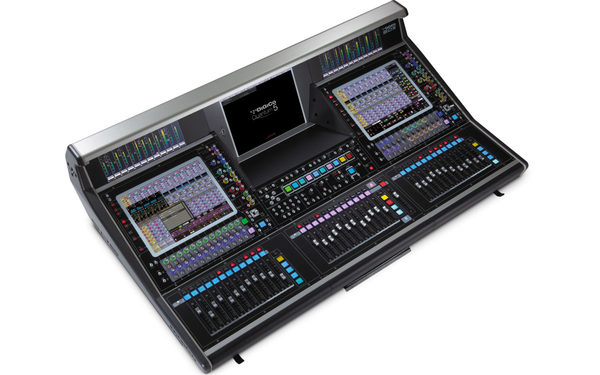

Digico Quantum 5 Digital Mixing Console

Consoles

$2500/ Day

Quantum 5 Features

Nodal Processing which allows monitor engineers unrivalled creativity on their IEM mixes.
True Solo to allow them to hear exactly as their artist does. These are combined with the multiple flavours of 48 channels of Mustard processing and 12 Spice Rack processing slots, including Chilli 6.
Mustard processing which provides a choice of two pre-amp modellers, a four-band EQ (including all-pass filters), four different boutique style compressor models and a gate/ducker. Quantum 5 is equipped with 48 mono Mustard processing strips which can be used on any channel type.
The Spice Rack, meanwhile, supports plugin style native FPGA processing options, allowing you to build a rack of up to twelve insertable processors. The first of these is the Chilli 6 – a six-band multi-band compressor which allows full control of all parameters, including DiGiCo’s unique, patented, release shape control, which means Chilli 6 is perfect for shaping vocals and instruments as well as focusing on problem frequencies.
I/O

Local I/O: Quantum 5’s local I/O includes 8 analogue inputs, 8 analogue outputs and 8 AES I/O (mono)

Optocore: The amount of connectivity is very special. Quantum5 comes as standard with one Optocore fibre loop, which is 504 channels of audio; there can be up to 14 DiGiCo racks, or a combination of racks and tie-lines around the loop; and there is an option to upgrade to dual loop, which allows for 1,008 Optocore channels of audio and 28 racks running.

UBMADI: In addition, the engine has a 48-channel UBMADI, so you can connect any laptop via USB and get 48 channels of recording and playback.

DMI: We have also incorporated two dedicated DMI slots to accommodate the growing family of DiGiCo DMI card options. Allowing the console connectivity to be configured for the demand of the tour or event, so you could plug in a Dante module, or the latest automatic mic mixing module. Each dedicated DMI slot provides you with an additional 64 x 64 I/O.

Waves: There is also Waves connectivity if you want to utilise SoundGrid processing, giving you a 64 x 64 additional I/O.

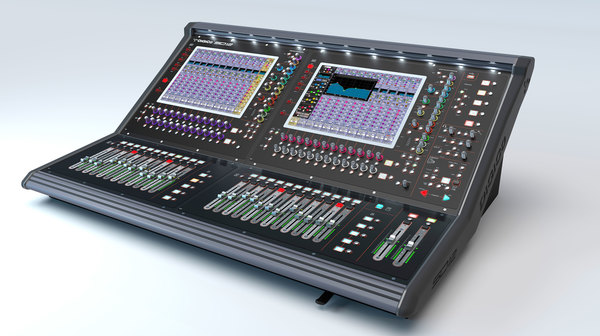

Sd12 Gallery 4
New Item

Digico SD12 Digital Mixing Console

Consoles

$1500/ day

OVERVIEW
The SD12 is set to raise the bar in terms of what users will now expect from a compact, affordable, multi- application digital console. Not only is SD12 a true sonic powerhouse, it also benefits from dual 15-inch touch screens, never before seen on a console in this price bracket, and is the first in the SD Range with built-in recording interfaces; which makes Virtual Soundchecking very straightforward indeed. Furthermore, the SD12 now includes a DVI output, for an overview of the console. New LED meters allow for a brighter, faster operation, and the SD12 Lightbar is identical to that of the SD5 and flagship SD7 consoles. And guess what? We even had space for two assignable master faders - only previously seen on the larger DiGiCo consoles - as well as dual DMI Slots, perfect for expandability.

MAIN FEATURES
Compact in size
Dual 15-inch touchscreens
24 channels in 1 view
Dual operator mode
Advanced surface connectivity with optional DMI cards
Latest generation Super FPGA
Familiar work flow and control in a more compact frame
Live Touring, Corporate, Install, HoW, Theatre & Broadcast
All at a price point that you won’t believe!
CONNECTIVITY
8 local mic/line inputs
8 local line outputs
8 mono AES/EBU in/out
Dual MADI in/out
Dual DMI card slots
Optional dual Optocore loops
UB MADI 24 channel USB interface
16 GPI/GPO, MIDI, Wordclock in/out
Overview monitor output, USB, Network

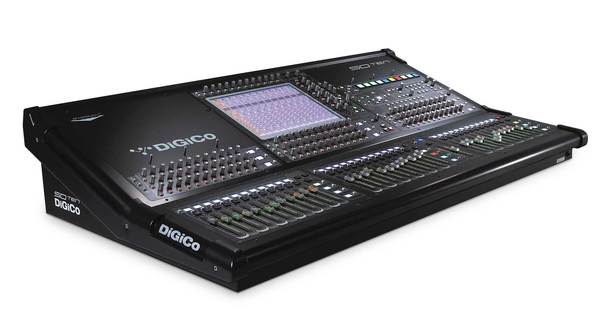

Sd10 Toppic 1

Digico SD10 Digital Mixing Console

Consoles

$1500/ day

SD10 : Specifications
General Specifications

Faders 37 x 100mm Touch-Sensitive, Motorised (25 on SD10T-24)
Screens 1 x 15” (38cm) LCD High - Resolution Touch Screen
Meters 38 x 20-Segment LED Bargraph (26 on SD10T-24)
Input Channels 132
Busses 56 assignable that can be configured as groups / auxiliary busses + LR or LCR Master
Solo Busses 2 Stereo Busses
Matrix 24 x 24 Matrix (Additional to Busses Above)
Control Groups 24, Selectable for VCA-style, Moving Fader, Mute Group
Graphic EQ 24 x 32-band, Gain +/- 12dB
Internal FX 24 Stereo FX Processors
Local I/O 8 x Mic/Line I/O, 8 x AES/EBU I/O (Mono)
MADI Interface 2 Redundant Interfaces, 75 Ohm BNC Connectivity
Standard Optics
MIDI Interface In / Out / Thru
VGA Port DB-15 Mini-Female (1024 x 768 Resolution)
USB Ports (3) USB 2
Light Connection (2) XLR3 1.2 – 12V
Ext Sync Word Clock, AES, MADI, Optics
Headphone TRS Unbalanced / 8-600 Ohms 1/4 Inch Jack
SD10 Dimensions 1398mm (w) x 818mm (d) x 285mm (h)
SD10 Weight 60Kg/132lbs (175Kg/385.80lbs with Optional Flightcase)
SD10 Flightcase 1586mm (w) x 1158mm (h) x 504mm (d) Weight 115Kg/253.53lbs (Optional)
SD10 Power Requirements 90-264 VAC, 47-63Hz Auto Sensing.235 watts

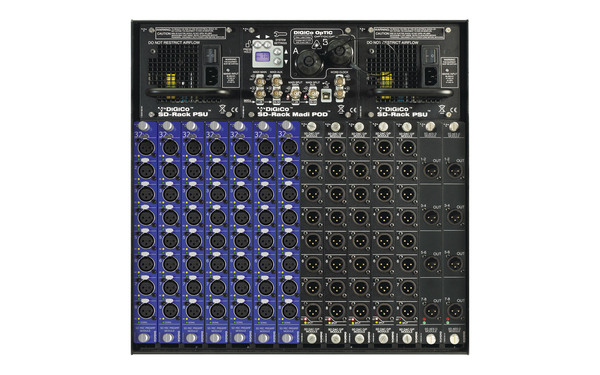

Digico SD Rack

Digico SD Rack 32-Bit Stage Rack

Consoles

$300/ Day

DiGiCo I/O enters the next generation
With support for up to 192kHz high resolution analogue I/O converters plus a comprehensive range of digital formats, it’s no wonder that the SD-Rack is accepted as the finest I/O rack available. From MADI to AES/EBU, Dante, AES-42, ADAT, or Aviom, the SD-Rack has it all.

Based on the same Stealth FPGA technology as the world-renowned SD-Range of consoles, the SD-Rack can run on the optical loop at 96KHz, while providing a down-sampled 48KHz feed from one of the MADI output streams; ideal for a broadcast truck split. The result is industry-leading A/D conversion complete with DiGiCo’s famous Gain Tracking™, meaning all consoles benefit from +/-40dB of digital gain.

Once a user has set the gain on each channel, every console on the loop can Gain Track their own mixes, and if any tweaking of analogue gain settings is required then each Gain Tracked channel will automatically compensate to ensure the mix remains the same. Best of all, should clipping occur, any of the consoles on the loop can take control of an analogue gain and make the necessary adjustments without affecting anyone else’s mix.

The SD-Rack’s 14 slots give you up to 56 inputs and 56 outputs, and users can choose whether to include the Optocore optical fibre connectivity or connect the SD-Rack to the console using MADI. When running at 48kHz, the two MADI ins and outs provide 56 fully redundant input and output channels via duplicate connections. When running at 96kHz, the SD-Rack delivers a full complement of 56 channels of MADI across the dual MADI ports.

Lastly, for ease of use the SD-Rack offers hot swappable interface cards with are automatically identified and configured, plus a top-mounted, hot swappable power supply.

No matter the size of the rack you choose, up to 14 DiGiCo I/O racks can run on a single optical loop, while as many as 28 can be accommodated on a dual loop system. This, coupled with the ability for any of the five consoles that can sit on one optical loop to receive all inputs and individually address output slots on any rack, gives the engineer or system designer unprecedented versatility.

S6 L24 D144 Large
New Item

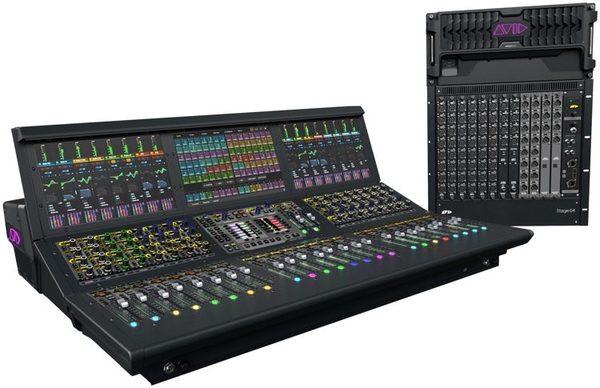

Avid S6L 24D Digital Mixing Console

Consoles

$1500/ day

Avid S6L-24D-144 Specifications:

S6L-24D Control Surface:
Daylight Visible Touchscreens: 12.1" touchscreen x3
Faders: 24 + 2
Knob Modules: 2x 32, each with high-resolution OLEDs and tri-color function indicator
Master Live Module: Graphic TFTs with soft buttons; Touch and Turn assignable encoder; 2 assignable faders; monitoring, layout and snapshot controls; transport controls and function buttons
Metering: 30-segment meters per channel, with pre- and post-fade metering options; Nominal indicator, Expander/Gate status and Compressor/Limiter gain reduction meters
Analog Inputs: 8 XLR mic/line inputs with 48V and signal present LEDs
Analog Outputs: 8 XLR outputs with mute and signal present LEDs
Digital Inputs: 4 pairs of XLR stereo AES/EBU (8 channels total)
Digital Outputs: 4 pairs of XLR stereo AES/EBU (8 channels total)
Headphone Outputs: 2 independent 1/4" TRS stereo headphone jacks
Ancillary I/O: DVI-D video out, 5 USB 2.0 (2 rear, 2 front, 1 internal), ECx Ethernet port for wired/wireless remote control, GPIO (8 in/8 out), 2 footswitch, Linear Time Code input, MIDI I/O
Ethernet AVB Ports: 2 etherCON (copper), 2 selectable as etherCON (copper) or SFP (fiber); redundant ring topology
2-Track USB: Stereo record/playback via USB flash drive (transport and playlist integrated into VENUE software)
Power Supply: Dual redundant, internal hot-swappable PSUs
Height (front, rear): 3.6" x 15.3" (91 mm x 388 mm)
Width: 38.9" (989 mm)
Depth: 31" (787 mm)
Weight: 121 lbs (55 kg)
E6L-144 Processing Engine:
Sample Rates: 48 kHz, 96 kHz
Input Channels: 144
Input Processing: True Gain™ gain compensation, HPF, LPF, 4-band PEQ, Expander/Gate, Compressor/Limiter, Delay, 4 plug-in inserts, hardware insert
Mix Busses: 64 + LCR
Output Processing: 7-band PEQ, Compressor/Limiter, Delay, 4 plug-in inserts, hardware insert
Matrix: 16 x 16
VCAs: 24
Stereo Solo Busses: 2, with independent control
Graphic EQs (31-band): 32
Plug-in Support: HDX-powered, 64-bit AAX DSP plug-ins via expansion slots
Plug-in Slots: 128
Pro Tools Integration: Record/play back up to 64 tracks via Ethernet AVB; higher track counts with Thunderbolt option card (sold separately)
Ethernet AVB Ports: 2 per Ethernet AVB card; selectable as etherCON (copper) or SFP (fiber) with redundant ring topology; engine can be expanded with up to three Ethernet AVB cards
Word Clock I/O: BNC, 75 Ohm coaxial
USB Ports: 5 USB 2.0 ports (2 front, 2 back, 1 internal)
Option Card Slots: 8 PCI Express (PCIe)
Power Supply: N+1 redundant; internal hot-swappable PSUs
Dimensions (HxWxD): 8.6" x 16.9" x 19" (218 mm x 430 mm x 483 mm)
Rack Spaces: 5U
Weight: 61 lbs (28 kg)

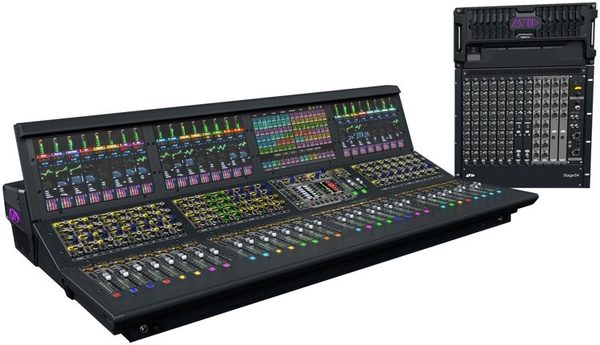

S6 L32 D192  Avid Venue S6l System With S6l 32d Control Surface And E6l 192 Engine
New Item

Avid S6L 32D Digital Mixing Console

Consoles

$1500/ day

Avid VENUE | S6L-32D-112 Features:
S6L-32D Control Surface
(32) channel faders across 4 Channel Fader Modules, plus 2 assignable faders in the Master Live Module
(96) assignable channel knobs (encoders) across 3 Channel Knob Modules
(1) Master Touchscreen (central screen for quick navigation, parameter identification, and control)
(1) Master Live Module (provides control over global system parameters, such as channel banking, snapshots, and monitoring)
(3) Channel Touch Modules (touchscreen display provides access and control to parameters in Meters view and Channel view)
Local analog I/O, digital I/O, and ancillary I/O, including ECx for remote control and DVI for connecting an external monitor (sold separately) for VENUE software display
E6L-112
(112) input channels
(48) mix busses + LCR
(100) plug-in rack slots
16 x 16 matrix
Includes 1 HDX-192 DSP card for sound processing
(2) expansion slots to add capabilities through option cards, including Waves SoundGrid support, Ethernet AVB, and MADI I/O (expansion cards sold separately)
Stage 64 (48x8)
Includes redundant PSUs, (6) SRI-192 Input Cards, (1) SRO-192 Output Cards, 48 analog inputs/8 analog outputs*
64-channel MADI split
10U rack
Network up to three Stage 64 racks together to reach the maximum 192 inputs supported by the E6L-192 engine (additional Stage 64 units sold separately)
Scale your I/O, get more I/O distribution flexibility, or add local I/O by mixing and matching Stage 64 with other VENUE | S6L I/O racks
Dimensions (H x W x D): 8.6" x 16.9" x 19" (218 x 430 x 483mm)
Rack spaces: 5RU
Weight: 74 lbs. (33 kg)

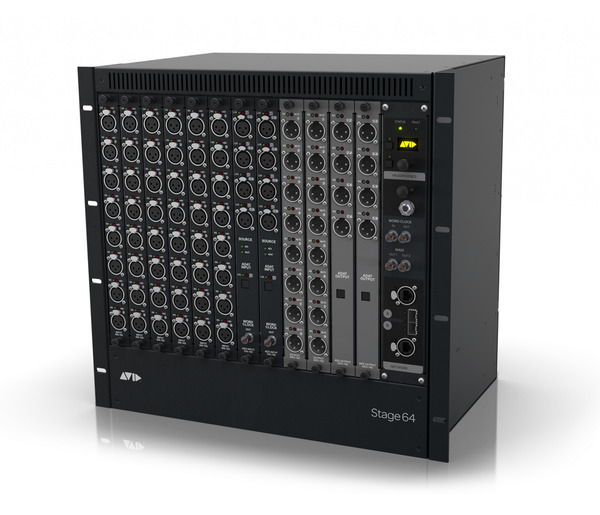

Avid Stage 64
New Item

Avid Stage 64 Stage Rack

Consoles

$300/ Day


Avid Stage 64 Specifications:
Maximum I/O: 64 input channels, 32 output channels @48/96 kHz
I/O card slots: 12
Sample rates: 48/96 kHz
Ethernet AVB ports: 2, selectable as etherCON(copper) or SFP (fiber), with redundant ring topology
Maximumcable length:
Copper: 328 ft (100 m)
Fiber: 1,640 ft (500 m)
MADI: Dual MADI output offers direct split of all 64inputs
Headphone confidence monitor:
1/4" TRS stereo headphone jack with volume control
Display for channel selection
Word Clock I/O: BNC, 75 Ohm coaxial
Power supply: Dual redundant internal PSUs
Dimensions (HxWxD): 17.5" x 17" x 12.2" (445x 432 x 310 mm)
Rack spaces: 10U
Weight: 86 lbs (39 kg)

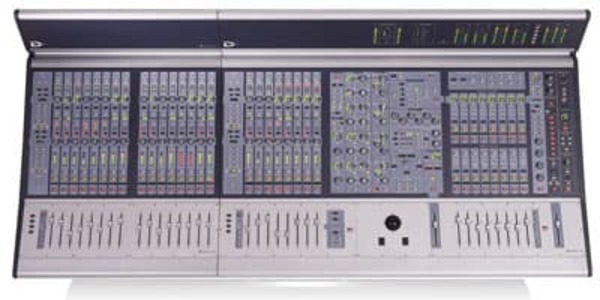

Avid D-Show

Avid D-Show Digital Mixing Console

Consoles

$850/ Day

VENUE D-Show System Audio Specifications
Internal Sample Frequency 48 kHz
External Sample Frequency 48 kHz +/– 10 ppm (word clock input)
Processing Delay less than 2.8 ms (96 channels, stage input through L–R bus to stage output)
Internal Processing up to 48-bit, fixed point
288 dB internal dynamic range
Frequency Response +/– 0.5 dB (22 Hz – 20 kHz BW, relative to 1 kHz)
THD + N less than 0.01% Stage input to L–R bus, input gain @ min, –1 dBFS output,
20 Hz – 20 kHz BW
Dynamic Range 108 dB typ
Maximum Voltage Gain 84 dB (stage input to L–R bus, channel & L–R faders @ max)
Crosstalk –100 dB typ (Adjacent stage inputs to L–R bus, @ 1 kHz)
Residual Output Noise –90 dBu typ (22 Hz – 20 kHz BW)
VENUE D-Show Main Unit Headphone Output
Connector 1/4-inch TRS unbalanced
Output Impedance 50 ohms
Max RMS Power Output
(at +21 dBu:
(with 32-ohm phones) 20 mW
(with 600-ohm phones) 130 mW
VENUE D-Show Main Unit Talkback Mic Input
Connector XLR3-F
Phantom Power +15V @ 6mA (always on)
Sensitivity (fixed) –20 dBu
Input Impedance 20K ohms

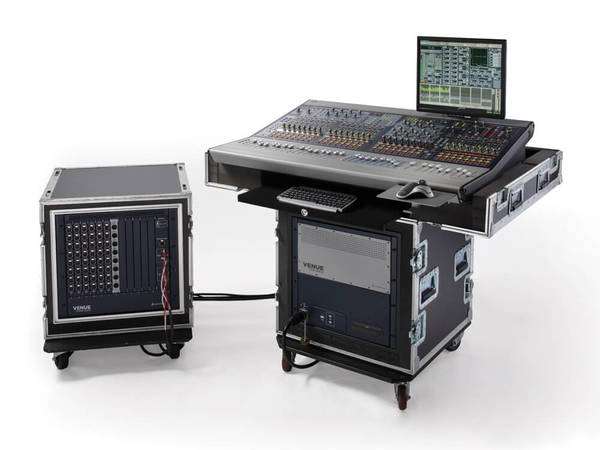

Avd Prfl Sys 2

Avid Profile Digital Mixing System

Consoles

$850 / Day

Avid Profile Features:
Small footprint: 45.3" x 31.1" x 6.65" (1150 x 790 x 169 mm)
24 input faders, 8 output faders, one Mains fader
Single row of assignable encoders
Provides up to 128 inputs when integrated with FOH Rack and two Stage Racks
Eight GPI inputs and eight GPI outputs allow Profile to send or respond to simple switch closures
Eight assignable function buttons
The input channel section provides immediate visual and tactile
control in a familiar channel strip layout. Each channel features an
independent, assignable encoder for quick adjustment of key parameters-such as gain, pan, compression, gate threshold, and aux send levels-without having to assign each channel to the console's central control section.
Four fader banks allow easy access to the full 96-input capacity of the 24-fader D-Show Profile console.
Multi-Function input faders offer access to all four banks of input faders as well as the dedicated effects returns. They can also be used as encoders for 1/3-octave graphic equalizers.
View and adjust all parameters for a selected channel within the Assignable Channel Section (ACS). The ACS features dedicated controls for assigning and adjusting buses, auxiliary sends, onboard and plug-in EQs and dynamics processors, and more.
View Mode controls provide immediate access to every D-Show software page-such as the inputs, outputs, fi ling, snapshots, patch bay, plug-ins, and options pages-at the push of a button. Preview and recall all snapshots with the rotary control.
The D-Show Profile master section features assignable encoders to control numerous operations, including output pans and mono and stereo (PQ) matrix mixes. The encoders are also mapped for plug-in control-all parameters appear below each encoder in the six-character LCD display.
The console features high-quality, touch-sensitive, 100-mm faders that can be selectively assigned as master controls for auxes, stereo (PQ) matrixes, mono matrices, subgroups, and VCA masters.
The Master/Global section houses controls for the main left, right,
and center/mono buses. All headphone and near-fi eld monitor controls are located near all solo status selections. Dedicated two-track, talkback, and noise sources-plus eight programmable mute
groups-are also available.
The meter bridge offers a high-resolution display of the left, right, and center mono output levels, plus eight assignable output meters to display aux, stereo (PQ) matrix, mono matrix, and subgroup output levels. Additionally, the bridge provides high-resolution meters for ACS targeted inputs, which include independent meters for compressor and gate gain reduction displays.

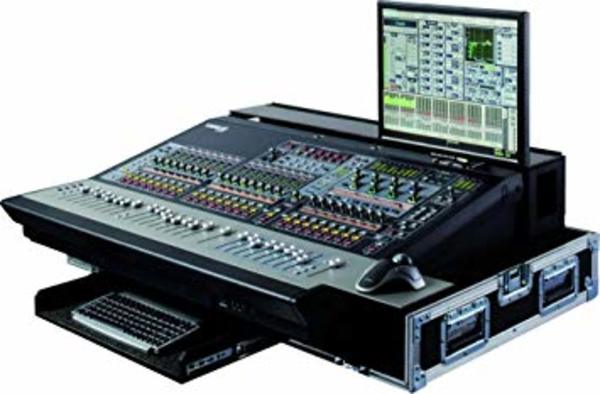

Sc48

Avid SC48 Digital Mixing Console

Consoles

$450 / Day

The identical VENUE software platform
All VENUE systems operate under one common software platform - VENUE D-Show software. D-Show software sets new standards in operational efficiency and workflow, giving you instant access to and full control over any function of the system. Just a simple button push on the console or click from the screen gives you access to inputs, outputs, filing operations, snapshots, the digital patch bay, plug-ins, and user options. And because all VENUE systems share this same software platform, engineers only need to learn it once to mix on any VENUE system, big or small, and can create and load show files for use on any VENUE system.

Avid VENUE SC48 48-channel Live Digital Mixer and Pro Tools Recording System Features:
Redundant Power Supply
Fully integrated console offers built-in I/O for stage and ancillary sources, DSP, and tactile control for ultimate portability
Compact footprint fits small- to mid-size clubs, houses of worship, theaters, corporate events, and more
First-rate VENUE sound quality provides amazing audio clarity in any room
Supports professional audio plug-ins for creating studio-quality mixes live
Pro Tools FireWire interface and software included for audio recording and playback system connection
VENUE D-Show software, the industry's easiest, most comprehensive control software
48 analog mic/line XLR inputs, 16 analog line outputs (expandable to 32)
Single expansion slot for maximizing output count or adding A-Net connectivity
16 Aux Sends, 8 Groups, plus 8 mono matrixes (linkable as up to 4 stereo matrixes)
Choice of Left-Right plus Mono or Left-Center-Right Mains bus configuration
26 touch-sensitive, motorized faders: 16 input, 8 output master, 1 Flex Channel, and 1 Mains
16 assignable, push-switch rotary encoders with multi-segment LED rings enable immediate access to key parameters
Additional I/O, including talkback, analog and digital 2-track, GPI, MIDI, and Word Clock

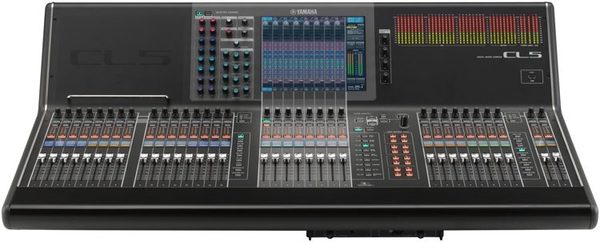

Yamaha CL5

Yamaha CL5 Digital Mixing Console

Consoles

$500/ Day

Yamaha CL5 Digital Mixer Features:
32-fader digital mixing console
72 mono and 8 stereo mixable channels
Connect up to 8 Rio series stages boxes (sold separately) for I/O
Touchscreen display for intuitive control over the Centralogic user interface
Built-in Dante interface plus 3 MY-card slots for digital expansion
Control port for computer control (wired or Wi-Fi)
Portico 5033 EQ and Portico 5043 compressor/limiter processors designed by Rupert Neve Designs
Dan Dugan automatic mixing system easily optimizes microphone gain and fights feedback
Nuendo Live and Dante Virtual Soundcard licenses included

Yamaha QL1

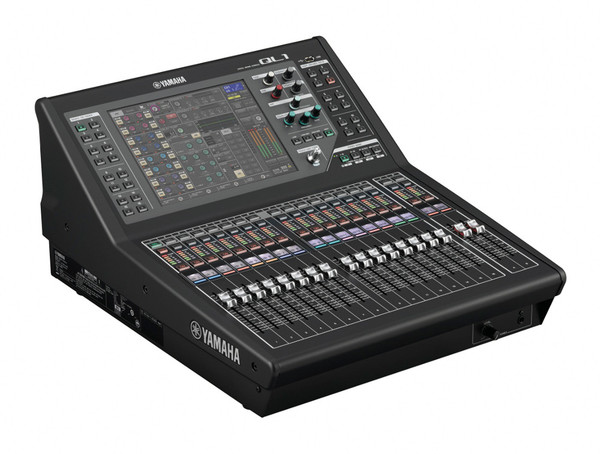

Yamaha QL1 Digital Mixing Console

Consoles

$250/ Day

Yamaha QL1:

Tech Specs
Type: Digital
Channels: 32 mono, 8 stereo mixing channels
Inputs - Mic Preamps: 16 x XLR
Phantom Power: 16 x Channels
Outputs - Main: 8 x XLR (Omni)
Inputs - Digital: 2 x EtherCon Cat5 (Dante Primary, Secondary)
Outputs - Digital: 1 x XLR (AES/EBU), 2 x EtherCon Cat5 (Dante Primary, Secondary)
Busses/Groups: 16 mix, 8 matrix
Channel Inserts: Yes
Talkback: Yes
MIDI I/O: In, Out
Data I/O: Network RJ-45, GPI
USB: 1 x Type A
I/O Expansion Slots: 2 x Slots (mini-YGDAI)
Headphones: 1 x 1/4"
Word Clock: In, Out
Faders: 18 x 100mm Throw
EQ Bands: 4-band Parametric
Effects: Yes
Rackmountable: Yes (kit sold separately)
Height: 10.7"
Depth: 22.1"
Width: 18.4"
Weight: 32.4 lbs.
Manufacturer Part Number: QL1

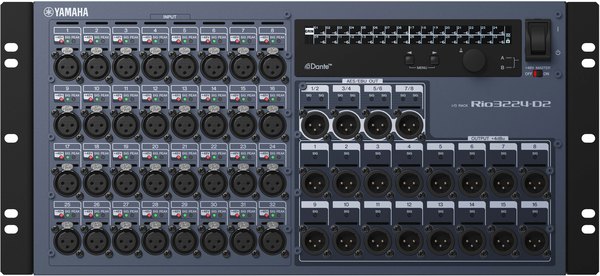

Yamhaa Rio
New Item

Yamaha Rio3224-D2 32Ch Stage Box

Consoles

$250/ Day

Tech Specs
Type: Stage Box Remote Interface
Compatibility: Rivage PM7 Mixing System, CL Digital Mixer, QL Digital Mixer
Channels: 32 x 16 (analog), 32 x 24 (including AES/EBU)
Inputs - Mic Preamps: 32 x XLR
Phantom Power: Yes (remote on/off)
Outputs - Main: 16 x XLR (line out)
Outputs - Digital: 4 x XLR (AES/EBU)
Data I/O: 2 x Ethernet (Dante Primary, Secondary)
Software: Dante Controller, R Remote Application
Rackmountable: Yes, 5U
Power Source: Dual Redundant Power Supply, 2 x Standard IEC AC inputs
Height: 8.6"
Depth: 14.2"
Width: 18.9"
Weight: 27.3 lbs.
Manufacturer Part Number: Rio3224-D2

Yamaha PM5D

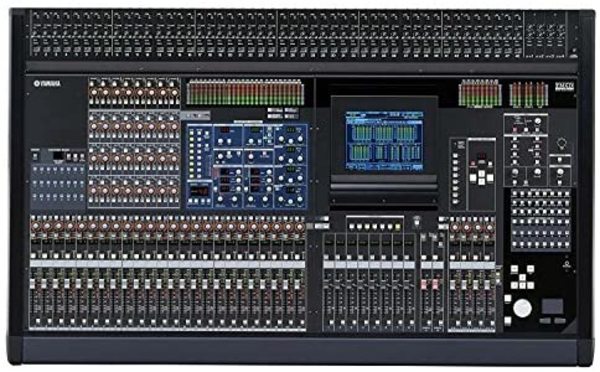

Yamaha PM5D-RH Digital Mixing Console

Consoles

$750/ Day

Yamaha PM5D-RH:


Outline
Mixing capability Mixing channels 48 Mono + 4 Stereo -
GROUP 24 Mix (Group/AUX) busses -
AUX 24 Mix (Group/AUX) busses -
MAIN Stereo A, Stereo B -
MATRIX 8 -
DCA/VCA 8 (Output grouping also available at Group 7 and 8) -
Input channel functions Delay, HPF, Attenuator, 4-band PEQ, 2x Dynamics -
Output channel functions 8-band PEQ, Dynamics -
On-board processors 8x SPX multi effectors, 12x 31-band GEQ -
I/O Mic inputs 48 (Recallable) -
Phantom power +48V DC; ON/OFF per channel -
Line inputs 4x Stereo (Compliant with mic input), 2x 2tr in -
AD converter 24-bit; 128-time over sampling -
Line outputs 36 Omni output, Monitor out and Cue output -
DA converter 24-bit; 128-time over sampling -
Digital I/O 3x 2tr in/out, Cascade in/out -
Expansion slots 4x Mini-YGDAI (16-in/16-out) -
Control and others To Host(USB), GPI, HA remote, RS422 remote, Time code in, Word clock I/O, 3x Lamp, PCMCIA slot -
General specifications
Internal processing 32bit, Accumulator: 58bit -
Sampling frequency rate Internal 44.1kHz, 48kHz, 88.2kHz, 96kHz -
External 44.1kHz/88.2kHz (-10%) - 48kHz/96kHz (+6%) -
Signal delay Less than 2.5ms (@48kHz), Less than 1.25ms (@96kHz) -
Total harmonic distortion Less than 0.05% (20Hz-40kHz) -
Frequency response 0, +0.5, -1.5dB 20Hz-40kHz -
Dynamic range DA: 110dB; AD+DA: 108dB -
Hum & noise level Equivalent input noise -128dBu -
Residual output noise -86dBu -
Crosstalk -80 dB -
Power requirements Use PW800W -
Power consumption 660W (when use with PW800W) -
Dimensions W 1551mm; 61-1/16in -
H 283mm; 11-1/8in -
D 950mm; 37-3/8in -
Net weight 97kg; 213.8lb -
Accessories Owner’s manual, 3x Gooseneck lamp, DC power cable

Yamaha Ls9 16

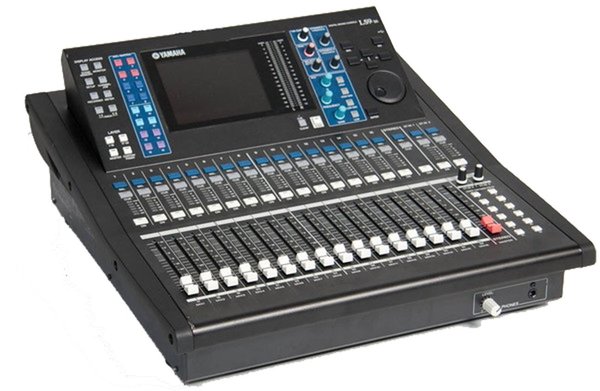

Yamaha LS9-16 Digital Mixing Console

Consoles

$150/ Day

• 16 mono mic/line input channels plus 4 stereo input channels, expandable up to 32 channels in two layers.
• 16 mix buses, 8 matrix buses, plus stereo and mono buses with LCR mode.
• Top-performance analog mic/line preamplifiers.
• Compact and light enough for one person to move and set up easily.
• Yamaha Selected Channel interface allows smooth, intuitive access to detailed channel functions via a color LCD display and
logically arranged encoders.
• Extensive gating, compression, and equalization facilities.
• Built-in USB memory recorder/player for recording or BGM playback.
• Virtual Rack packed with effects and EQ for just about any processing requirements.
• Scene memory for instant store and recall of all console parameters, including head amp gain.
• Advanced access management includes user keys (standard USB memory devices) that can be issued with different access levels for
different users.
• LS9 Editor Software for enhanced operability and programmability

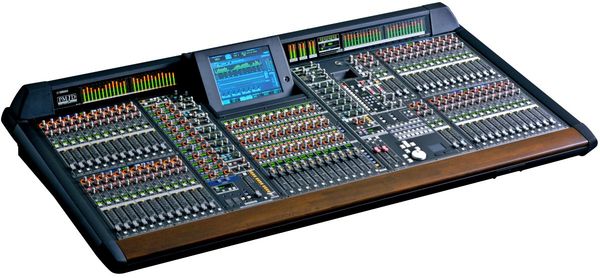

PM1D

Yamaha PM1D Digital Mixing Console System

Consoles

$1500/ Day

PM1DV2:

Outline
Mixing capability Mixing channels 48 Mono + 4 Stereo, 96 Mono + 8 Stereo
GROUP 48 Mix (Group/AUX) busses
AUX 48 Mix (Group/AUX) busses
MAIN Stereo A, Stereo B
MATRIX 12
DCA/VCA 12 (Output grouping also available at Group 9 to 12)
Input channel functions HPF, Attenuator, 4-band PEQ, 2x Dynamics, Delay
Output channel functions 6-band PEQ, Dynamics, Delay
On-board processors 8x SPX multi effectors, 24x 31-band GEQ
I/O Mic inputs Max. 320ch (Recallable)
Phantom power +48V DC; Remote ON/OFF per channel
Line inputs Same as Mic inputs
AD converter 28-bit equivalent (LMY2-MLAB, LMY4-AD); 24bit (LMY4-MLF)
Line outputs Max.192ch
DA converter 27-bit equivalent
Digital I/O Use DIO8
Expansion slots Use each PM1D component
Control and others I/Os from/to DSP1D(-EX) and CS1D, To Host (USB/D-sub 9pin), Time code in, MIDI, GPI, Remote, Word clock I/O, 4x Lamp, 2x PCMCIA slots
General specifications
Internal processing 32bit, Accumulator: 58bit
Sampling frequency rate Internal 44.1kHz, 48kHz
External 44.1kHz (-10%) - 48kHz (+6%)
Signal delay Less than 3.4ms (@48kHz)
Total harmonic distortion Less than 0.02% (20Hz-20kHz)
Frequency response 0, +1, -2dB 20Hz-20kHz
Dynamic range AD+DA: 120dB
Hum & noise level Equivalent input noise -128dBu
Residual output noise -96dBu

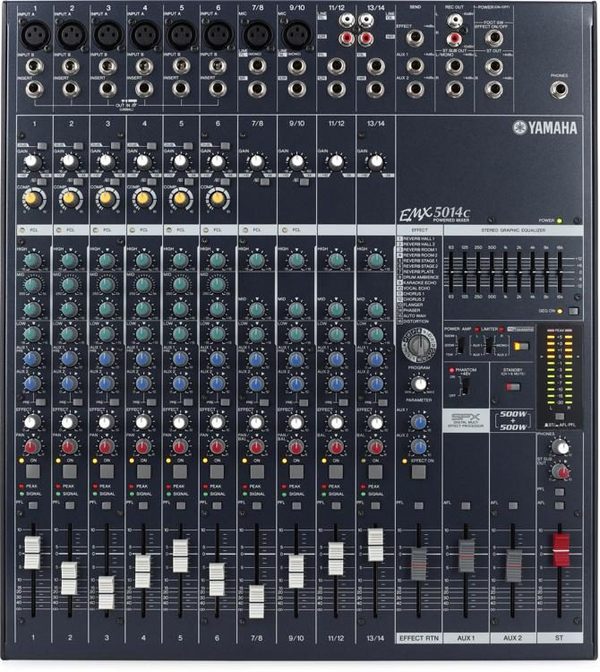

Yamaha EMX MIxer

Yamaha EMX50134C Powered Mixing Console

Consoles

$50/ Day

Yamaha Emx5014C:

Tech Specs
Type: Powered
Channels: 14
Power: 350W @ 8 ohms, 500W @ 4 ohms
Inputs - Mic Preamps: 6 x XLR (CH 1-6), 2 x XLR (CH 7-10 Stereo)
Phantom Power: 8 x Channels
Inputs - Line: 6 x 1/4" (CH 1-6), 4 x 1/4" (CH 7-10, Stereo), 4 x 1/4"(CH 11-14, Stereo, RCA)
Outputs - Main: 2 x speakON, 2 x 1/4", 2 x 1/4"
Outputs - Other: 2 x RCA (Tape), 2 x 1/4" (ST Sub)
Send/Return I/O: 2 x 1/4" (Aux), 1 x 1/4" (Effects)
Aux Sends: 1 x Pre, 1 x Pre/Post
Channel Inserts: Yes (CH 1-6)
Headphones: 1 x 1/4"
EQ Bands: 3-band Sweepable Mid (Channels), 3-band (Stereo), 9-band Graphic (Main)
Effects: Yes (Global and Compression on Channels 1-6)
Faders: 14 x 60mm
Rackmountable: Yes
Height: 6.13"
Width: 17.5"
Depth: 19.5"
Weight: 23 lbs.

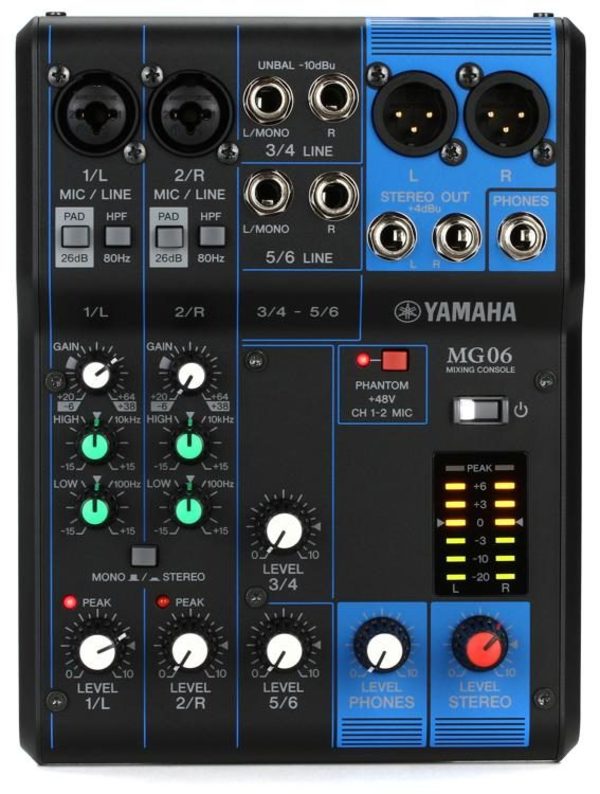

Yamaha MG06FX

Yamama MG06FX Mixing Console

Consoles

$25/ Day

Yamaha MG06FX

Tech Specs
Type: Analog
Channels: 6
Inputs - Mic Preamps: 2 x Combo
Phantom Power: 2
Inputs - Line: 4 x TRS
Outputs - Main: 2 x XLR, 2 x TRS
Headphones: 1 x 1/4"
EQ Bands: 2-band (High, Low)
Height: 2.4"
Width: 7.9"
Depth: 5.9"
Manufacturer Part Number: MG06

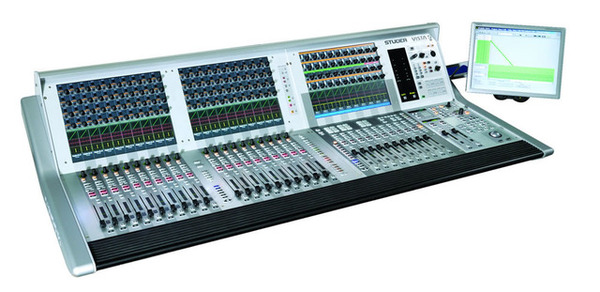

Studer Vista

Studer Vista 5SR Digital Mixing Console System

Consoles

$1500/ Day

Studer Vista 5SR:


32-fader Desk:
The 32-fader desk consists of 20 channel strips, optimised for input channel operation, and 12 additional versatile strips for operating output and input channels. By using the standard Vistonics screen, up to 52 outputs are under immediate control. A total of up to 240 channels can be accessed from the desk and laid out in any order, with the Vistonics system giving instant control over all related channel functions. DSP power and I/O are specified by the customer. The total I/O capacity, comprising various cards including mic/line, ADAT, TDIF, AES/EBU, SDI and MADI, may exceed 1700 inputs and outputs.

This input bay is situated to the right of the output/master section, and can be ‘isolated’ from any global adjustments made on the left side of the desk using the LOCK mode. For example, changing fader layers or sections on the left-side will not affect the right-hand side channel faders when locked. The right-hand fader section features its own control panel to switch in or out the processing and EQs, so two operators will always have direct access within their own sections and users don’t have to do any unnecessary moves across the console. When not locked, all channels on the desk follow the global view changes of displayed parameters, as well as following any section/layer changes.

SCore:
At just 6U (6 rack spaces), Studer's new Score DSP engine is much smaller than many DSP engines, and, by including some local I/O, demands much less space on installation than many other console systems.

Features:
The Vista 5 offers all the surround capabilities a user can dream of. Formats include 2CH stereo, LCR, LCRS and 5.1. The internal 5.1-to-stereo downmix function allows for simultaneous live productions in both formats. The Vista 5 also includes Studer's world-famous 'Virtual Surround Panning' (VSPTM), using not only amplitude, but also time delay and frequency response panning as well as artificially generated early reflections for realistic placement of sound sources.

SOundcraft Performer

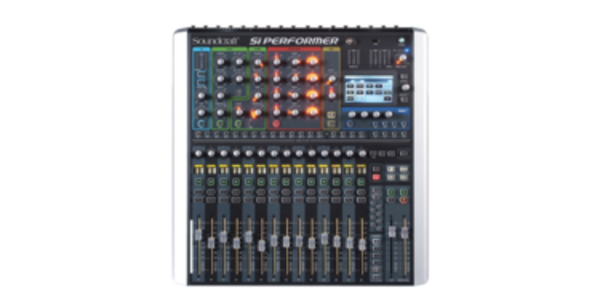

Soundcraft Si Performer 1Digital Mixing Console

Consoles

$125/ Day

Soundcraft SI Performer 1

Features
• 16 mono mic inputs
• 8 line inputs
• 80 channels to mix
• 2 ViSi Connect™ option card slots for 128 x 96 input/output paths
• Pre/Post selection per input per bus
• Freely assignable faders and patching
• Soundcraft FaderGlow™
• Colour backlit LCD screens per fader
• GEQ on every bus
• 20 sub-group / aux busses
• 4 FX busses
• 8 Matrix busses
• LRC Mix busses
• LCR panning
• 4 Stereo Lexicon Effects engines
• Delay on inputs and outputs
• 8 Mute Groups
• 8 VCA Groups
• AES in and out
• DMX interface and control -control sound and light simultaneously
• Freely assignable insert loops
• Harman HiQnet integration
• Colour touch screen interface
• Comes with removable side cheeks

Rednet Drive Rack

MSI Custom Focusrite REDNET Drive Rack System

Control Processing

$350/ Day

MSI Focusrite REDNET Drive Rack System is a MSI custom signal transport system. All In one Rack provides 16 x Analog I/O, 16 x AES3 I/O for Analog or Digital conversion to a Dante Network. Configured for use with Ethernet and Fiber optic Networks using Neutrik Ethercon and OpticalCon Connectors. MSI Custom I/O panels for easy access to all connections. Network Switches feature multiple VLAN configuration for Control and Dante Networking. Connect multiple racks together to create large Dante digital audio networks for unlimited signal transport. Fully redundant power supplies and UPS Battery Backup

MSI Custom Package Includes:

  • 1 x Focusrite REDNET A16R
  • 1 x Focusrite REDNET D16R
  • 2 x Cisco SG350 Network Switch
  • 1 x Rackmount UPS
  • 1 x Custom I/O Panels For Network and Audio
  • 1 x 8 Space Shock Mounted Equipment Rack

Rednet Drive RackRednet Drive Rack

Focusrite MADI RACK

MSI Custom Focusrite REDNET MADI Rack System

Control Processing

$350/ Day

MSI Focusrite REDNET MADI Rack System is a MSI custom signal transport system. All In one Rack provides 128 x MADI  I/O for Digital conversion to a Dante Network. System works with Optical or BNC MADI Systems. System is configured for use with Ethernet and Fiber optic Networks using Neutrik Ethercon and OpticalCon Connectors. MSI Custom I/O panels for easy access to all connections. Network Switches feature multiple VLAN configuration for Control and Dante Networking. Connect multiple racks together to create large Dante digital audio networks for unlimited signal transport. Fully redundant power supplies and UPS Battery Backup

MSI Custom Package Includes:

  • 2 x Focusrite REDNET D64R
  • 2 x Netgear GS728 Network Switch
  • 1 x Rackmount UPS
  • 1 x Custom I/O Panels For Network and Audio
  • 1 x 8 Space Shock Mounted Equipment Rack

Focusrite MADI RACK

Focusrite MADI RACK

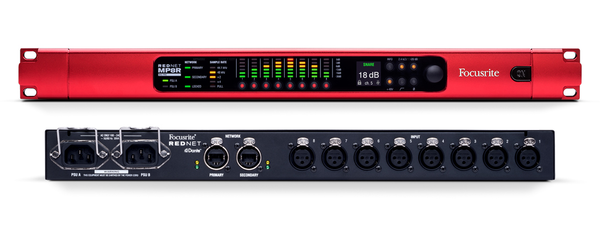

Focusrite MIC PRE RACK

MSI Custom Focusrite REDNET Mic Pre System

Control Processing

$350/ Day

MSI Focusrite REDNET Mic Pre is a MSI custom signal transport system. All In one Rack provides 16 x Analog Mic Preamps and 8 x Analog I/O for Mic or Line level conversion to a Dante Network. Configured for use with Ethernet and Fiber optic Networks using Neutrik Ethercon and OpticalCon Connectors. MSI Custom I/O panels for easy access to all connections. Network Switches feature multiple VLAN configuration for Control and Dante Networking. Connect multiple racks together to create large Dante digital audio networks for unlimited signal transport. Fully redundant power supplies and UPS Battery Backup

MSI Custom Package Includes:

  • 1 x Focusrite REDNET MP8R Mic Preamp Dante Interface
  • 1 x Focusrite REDNET A8R Dante Interface
  • 2 x Cisco SG350 Network Switch
  • 1 x Rackmount UPS
  • 1 x Custom I/O Panels For Network and Audio
  • 1 x 8 Space Shock Mounted Equipment Rack

Focusrite MIC PRE RACK

Focusrite MIC PRE RACK
Focusrite A16R

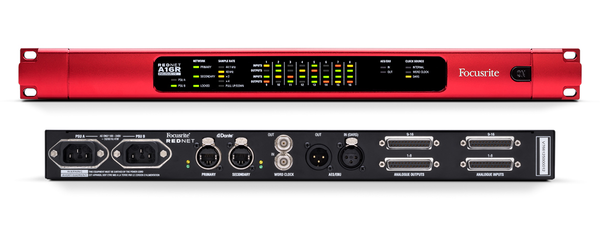

Focusrite REDNET A16R Dante Interface

Control Processing

$150/ Day

Focusrite Rednet A16R:

Tech Specs
Form Factor: Rackmount
Simultaneous I/O: 16 x 16
A/D Resolution: Up to 24-bit/192kHz
Analog Inputs: 2 x DB-25 (16 channels)
Analog Outputs: 2 x DB-25 (16 channels)
Digital Inputs: 1 x XLR (AES/EBU)
Digital Outputs: 1 x XLR (AES/EBU)
Clock I/O: In/Out
Data I/O: 2 x etherCON (Dante Primary, Secondary)
Software: REDNET Control 2
Power Supply: Daul power supplies, 2 x Standard IEC AC jacks
Rack Spaces: 1U
Manufacturer Part Number: AMS-REDNET-A16R

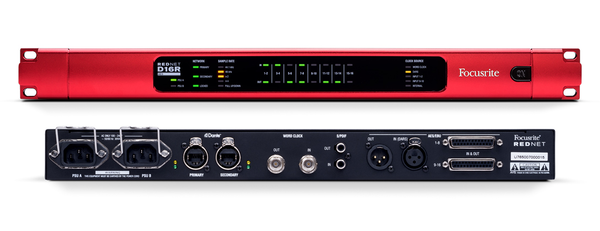

Focusrite D16R

Focusrite REDNET D16R Dante Interface

Control Processing

$150/ Day

Focusrite REDNET D16R

Tech Specs

Computer Connectivity: IP Network
Form Factor: Rackmount
Simultaneous I/O: 16 x 16
A/D Resolution: 24-bit/192kHz
Digital Inputs: 1 x XLR (AES/EBU), 1 x DB-25, 1 x S/PDIF (Coax)
Digital Outputs: 1 x XLR (AES/EBU), 1 x DB-25, 1 x S/PDIF (Coax)
Clock I/O: 1 x Word Clock (In), 1 x Word Clock (Out)
Data I/O: 2 x etherCON Ethernet
Rack Spaces: 1U
Height: 1.75"
Width: 19"
Manufacturer Part Number: AMS-REDNET-D16R

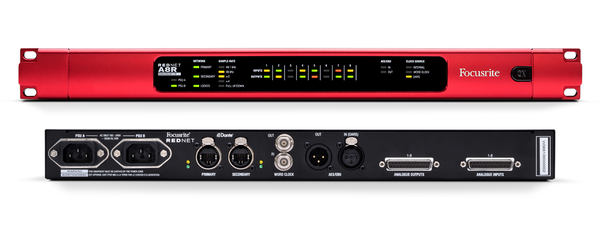

Focusrite A8R

Focusrite REDNET A8R Dante Interface

Control Processing

$150/ Day

Focusrite REDNET A8R


Tech Specs
Computer Connectivity: Ethernet
Form Factor: Rackmount
A/D Resolution: Up to 24-bit/192kHz
Analog Inputs: 1 x DB-25
Analog Outputs: 1 x DB-25
Digital Inputs: 1 x XLR (AES/EBU), Ethernet (Dante)
Digital Outputs: 1 x XLR (AES/EBU), Ethernet (Dante)
Clock I/O: In/Out
Power Supply: 2 x Standard IEC AC jacks, redundant power supplies
Rack Spaces: 1U
Manufacturer Part Number: AMS-REDNET-A8R

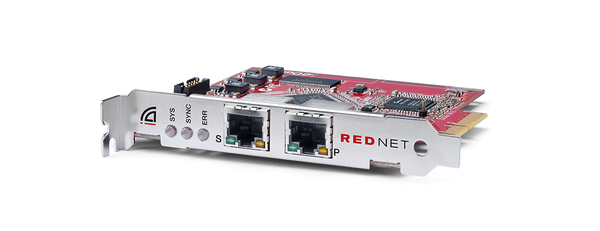

Focusrite PCIE

Focusrite REDNET PICE-R Dante Interface Card

Control Processing

$300/ Day

Focusrite RedNet PCIeR Card Features:
PCIeR interface for RedNet-series devices
Large track count and ultra-low latency
Dual RJ45 Ethernet ports for network redundancy
Dante technology gives you complete remote control over networked devices
Allows you to create and control a customized, networked facility
Works at all standard sample rates, from 44.1-192kHz
Under 3ms latency:
Round-trip, analog-to-analog latency through DAW with Focusrite RedNet A-D/D-A
Dual Ethernet ports for full network redundancy
128 channels in x 128 channels out at 96kHz and below
64 channels in x 64 channels out at 176.4kHz and 192kHz
Compatibility with any Dante network
Sample rate: up to 192kHz
Includes ASIO and Core Audio drivers
Thunderbolt PCIeR chassis compatibility

Focusrite D64R

Focusrite REDNET D64R Dante Interface

Control Processing

$150/ Day

Focusrite REDNET D64R:

Tech Specs
Computer Connectivity: IP Network
Form Factor: Rackmount
Simultaneous I/O: 64 x 64
Digital Inputs: 1 x BNC (MADI Coaxial), 1 x Optical (MADI)
Digital Outputs: 1 x BNC (MADI Coaxial), 1 x Optical (MADI)
Clock I/O: 1 x Word Clock (In), 1 x Word Clock (Out)
Data I/O: 2 x etherCON Ethernet
Rack Spaces: 1U
Height: 1.75"
Width: 19"
Manufacturer Part Number: AMS-REDNET-D64R

Focusrite MP8R

Focusrite REDNET MP8R Dante Interface

Control Processing

$150/ Day

Focusrite REDNET MP8R:

Tech Specs
Computer Connectivity: IP Network
Form Factor: Rackmount
Simultaneous I/O: 8 x 8
A/D Resolution: Up to 24-bit/192kHz
Built In DSP/FX: Yes
Number of Preamps: 8
Phantom Power: Yes
Analog Inputs: 8 x XLR
Data I/O: 2 x etherCON Ethernet
Rack Spaces: 1U
Height: 1.75"
Width: 19"
Manufacturer Part Number: AMS-REDNET-MP8R

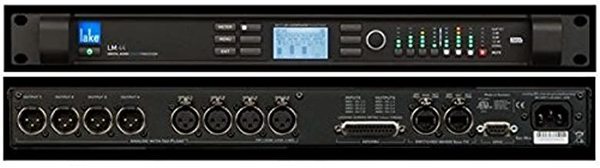

Lake LM44

Dolby Lake LM44 Digital Signal Processor

Control Processing

$250/ Day

Lake LM44 Processor

Features
Module configuration
2 Contour or 4 Mesa modules

Channel processing
6 in Contour mode, 4 in Mesa mode

Input routers
8 input routers with 4 priorities in each, seamless failover to lower priorities

Module input mixer
4 ch. for Contour, 8 ch. for Mesa-modules. Mix any ratio between all input routers.

Input processing
Parameteric EQ with Mesa and Ideal Graphic equalizers, both utilizing Raised Cosine algorithms

Output processing
Linear phase or Classic crossovers, Parametric EQ, shelving and all-pass filters

Features
Delay, Mute, Phase, Gain etc.

Limiters
LimiterMax with Peak and RMS limiter. Confi gurable MaxRMSLevel, MaxRMSCorner, MaxRMSAttack, MaxRMSRelease and MaxPeakLevel

SuperModule compatible
Yes

Audio Performance
Conversion resolution
24-bit

Internal Sample Rate / Data path
96 kHz / 32 bit floating point

Product propagation delay
Best case (AES synchronous 96 kHz to AES synchronous 96 kHz via module) 0.871 ms Analog (Analog in to Analog out via module) 1.049 ms Pass thru (Analog in to AES synchronous 96 kHz bypassing module) 0.158 ms

Maximum available user delay
2 seconds

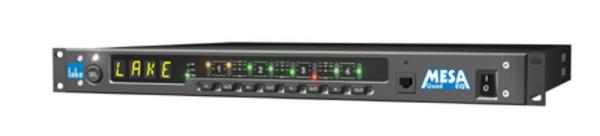

Lake MESA

Dolby Lake MESA QUAD EQ Digital Signal Processor

Control Processing

$125/ Day


Lake Mesa™ give you total control over every element of your sound by combining the responsiveness of an analog system with the pinpoint accuracy of Lake® 40-bitf loating point, 96kHz digital signal processing technology.Wireless graphical control gives you the freedom to walk the floor of avenue and adjust any individual or set of speakers in real time.The result? Maximum performance from your system and a smoother, more natural sound for every seat int he house

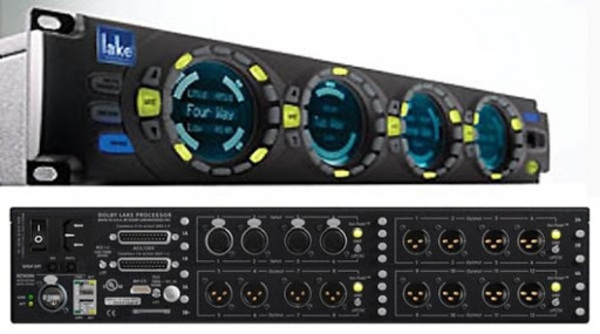

Dolby DLP

Dolby Lake DLP Digital Signal Processor

Control Processing

$250/ Day

The Dolby® Lake® Processor marks the next generation in digital loudspeaker and
equalization technology. With unsurpassed audio quality and the most advanced
loudspeaker processing available, it will improve the sound of any system. Effortless control
is provided through the Dolby Lake Controller software, or the exclusive front‐panel Portal
metering and control interface.
The Processor platform offers complete, native‐digital signal processing functionality, with
support for up to 4‐in, 12‐out loudspeaker applications and 8 in, 8‐out EQ applications. The
signal processing can also be changed to provide an EQ 4×4 configuration together with a
loudspeaker 2×6 configuration.
The Processor includes several advanced technologies for improving sound quality. These
include Raised Cosine EqualizationTM (the foundation underlying the Ideal Graphic EQTM and
Lake Mesa EQTM interfaces), plus linear phase crossovers, LimiterMaxTM loudspeaker
protection, and Iso‐FloatTM ground isolation.

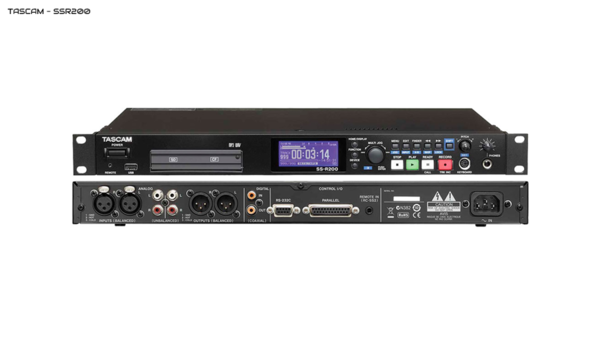

Tascam SD Recorder

Tascam SD Recorder

Playback/Record

$75/ Day

Tascam SS-R100 Specs
Type Solid state digital audio recorder
Supported File Types WAV and MP3
Recording Media Compact Flash, SD/SDHC, and USB
Connectors 1 x AC power input
1 x Stereo analog RCA input (2 jacks, L/R)
1 x Stereo analog RCA output (2 jacks, L/R)
1 x Coaxial digital RCA input (S/PDIF or AES/EBU)
1 x Coaxial digital RCA output (S/PDIF or AES/EBU)
1 x RS-23C/parallel control jack
1 x USB port
1 x PS/2 port
1 x 1/4" headphone jack
Power Requirements 100-240 VAC, 50-60 Hz
Power Consumption 100 V: 16 W
110-240 V: 20 W
Operating Temperature 41 to 95°F (5 to 35°C)
Dimensions (WxHxD) 19 x 1.75 x 11.85" (483 x 45 x 301 mm)
Weight 7.5 lb (3.4 kg)

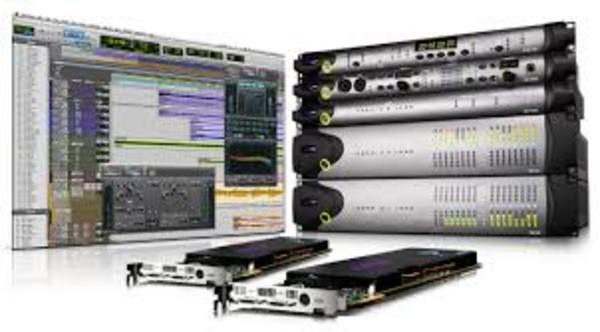

AVID PROTOOLS

Avid Protools Recording Systems

Playback/Record

$750/ Day

Custom configured Avid PROTOOLS 2020 and HD9 Systems Available.

Systems running on Apple Mac Book Pro and Mac Mini computers.

Nuendo

Steinberg Nuendo Live

Playback/Record

$500/ Day

64 channel recording for Yamaha consoles and other Dante systems.

SSL Recorder

SSL Extreme MADI Recorder

Playback/Record

$750/ Day

Solid State Logic Madi Extreme 128 Channel Recording system. Multiple Redundant Hard Drive Recording Server.

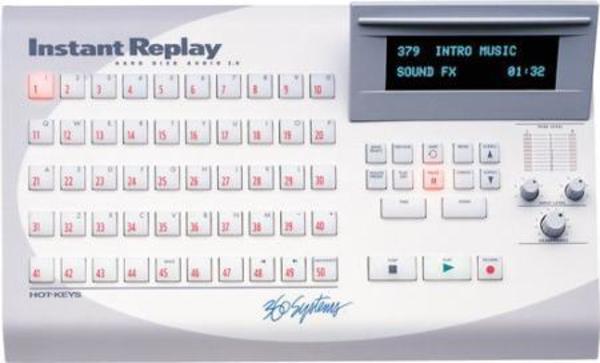

Instatn Replay

360 Systems Instant Replay

Playback/Record

$125/ Day

Instant Replay
16 / 24-bit, 44.1K / 48K recording formats
Balanced audio at +4, plus RCA jacks at -10 on
Precise editing of heads, tails, fades and levels
Large illuminated buttons for easy hands-on operation
Displays cut names, ID numbers, and length
Store multiple playlists of any size

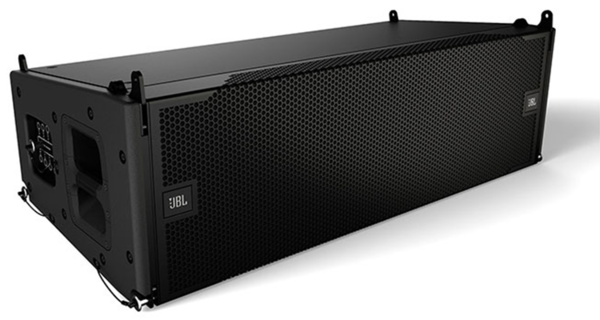

JBL A12
New Item

JBL VTX A12 Dual 12" Line Array Loudspeaker

Speakers

$250/ Day

Features
  • New and improved JBL transducers for the best output per weight
  • Innovative HF section integrates the phasing plug and waveguide for high sensitivity and linearity even at high output levels
  • Redesigned Radiation Boundary Integrator® (RBI) for reduced horn edge diffraction, improved LF sensitivity, lower distortion, and 90-degree coverage down to 250 Hz
  • Next Generation LF section, including industry-defining Differential Drive woofers, with a dual magnet, dual voice-coil design for extended linear excursion
  • Best-in-class rigging for streamlined, rapid deployment
  • Full-face grill for superior weatherization and refined aesthetics
  • New transport cart and frame for simplified transport and setup
  • Optimizations throughout the design for space efficiency and reduced weight while simultaneously improving performance
  • Full integration with JBL system control and prediction software
  • Lightweight design

Specifications
Frequency Response (-10dB) 46 Hz - 19 kHz (Preset: VTX A12)
Horizontal Coverage (-6 dB) 90 degrees nominal (250 Hz - 18 kHz)
Max SPL 146 dB (Preset: VTX A12)
System Amplification Crown Audio I-Tech HD
Nominal Impedance LF: 2x 8 ohms
MF: 8 ohms
HF: 8 ohms
LF Driver (2) JBL 2264H 12-inch Neodymium Differential Drive® woofer
MF Driver (4) JBL 2165H 5.5-inch Neodymium Differential Drive® woofer
HF Driver (3) JBL 2423K 2-inch annular diaphragm compression driver
Enclosure Finnish birch plywood, Black DuraFlex finish, four integral recessed handles
Suspension / Mounting High-grade steel with anti-corrosion coating, captive suspension plates, quick release pins, auto-locking mechanism for setting angles
Inter-enclosure Angle 0.25, 0.5, 1, 1.5, 2, 2.5, 3, 4, 6, 8, 10
Dimensions (H x W x D) 330 mm x 1118 mm x 495 mm
13 in x 44 in x 19.5 in
Net Weight (each) 60.8 kg (134 lbs)

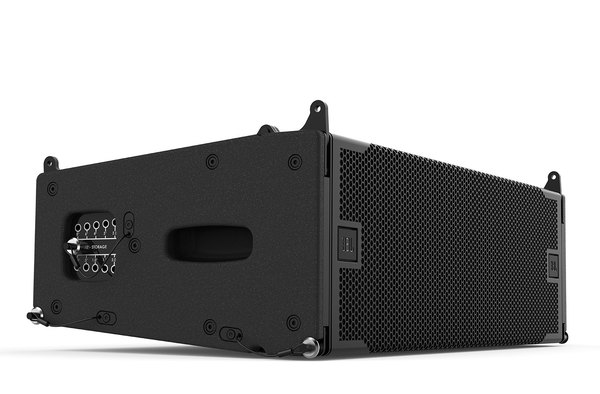

JBL A8
New Item

JBL VTX A8 Dual 8" Line Array Loudspeaker

Speakers

$175/ Day

Features
  • Innovative 3-way (bi-amp) design for best-in-class performance
  • JBL Differential Drive™ woofers and Slip Stream™ ports deliver optimal bass response down to 49 Hz
  • Common HF compression driver across A-Series products provides excellent sonic consistency
  • Mid-frequency Radiation Boundary Integrator® (RBI) design maximizes transducer density and improves horizontal directivity
  • Innovative auto-locking rigging mechanism for streamlined, rapid deployment
  • Built-in MF/HF passive network allows for reduced amplifier channels
  • Full-face, enclosed grille for refined aesthetics and weatherization (IP55)
  • Comprehensive mounting accessories expand configuration options
  • Integrates seamlessly with JBL system control and prediction software
  • Compact, lightweight design
Specifications
Frequency Response (-10dB) 50Hz - 19kHz (Preset: VTX A8)
Coverage Pattern 110-degrees nominal (300Hz - 18kHz)
Max SPL 139 dB (Preset: VTX A8)
System Processing Crown Audio I-Tech HD
Nominal Impedance LF = 8 ohms
MHF = 8 ohms
LF Driver (2) JBL 258J 8-inch woofers
MF Driver (4) JBL 2163H 3-inch mid-frequency drivers
HF Driver (2) JBL 2423K, 2-inch annular diaphragm compression drivers
Enclosure Finnish birch plywood, black DuraFlex finish, four integral recessed handholds
Inter-enclosure Angle 0.25, 0.5, 1, 1.5, 2, 2.5, 3, 4, 6, 8, 10
Dimensions (H x W x D) 227 mm x 761 mm x 375 mm
8.9 in x 29.9 in x 14.7 in
Net Weight (each) 29.5 kg (65.0 lbs)

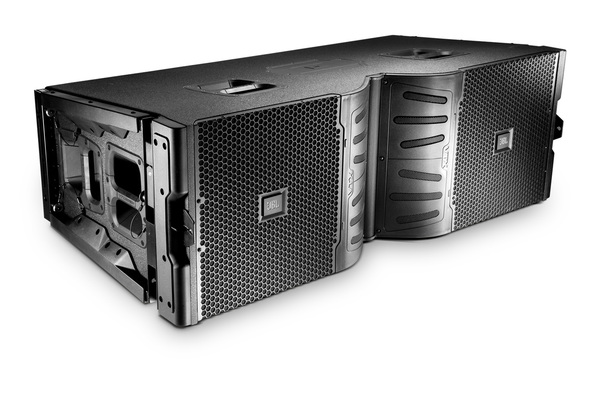

JBL V25

JBL VTX V25-II Dual 15" Line Array Loudspeaker

Speakers

$250/ Day

Features
  • New 4th Generation HF Waveguide technology
  • Revolutionary D2 Dual Diaphragm, Dual Voice Coil Compression Driver
  • JBL’s patented RBI (Radiation Boundary Integrator®)
  • Cardioid-Arrayable Subwoofer Enclosure Models
  • Aluminum front baffles for reduced cabinet height, weight and improved heat transfer
  • Patented JBL S.A.F.E.™ Suspension System
  • V5 Processing with Crown I-Tech HD or VRACK
  • JBL HiQnet Performance Manager™ System Configuration and Control
  • Available with either fixed angle tension suspension (V25-II) or compression suspension (V25-II-CS) hardware

Specifications
System Type Full Size 3-Way High Directivity Line Array Element with D2 Dual Drivers
Frequency Response (-10dB) 35Hz - 18 kHz (Preset: VTX V25-II)
Horizontal Coverage (-6 dB) 90 degrees nominal (200 Hz - 16 kHz)
Maximum Peak Output 141 dB (Preset: VTX V25-II)
System Amplification Crown Audio I-Tech HD
Nominal Impedance LF: 2x 8 ohms
MF: 8 ohms
HF: 8 ohms
LF Driver (2) JBL 2267H 15-inch woofer
MF Driver (4) JBL 2168H 8-inch mid-frequency driver
HF Driver (3) JBL 2430K D2 Dual Diaphragm Dual Voice Coil Compression Driver
Enclosure Cast aluminum front baffle, Finnish birch plywood, black DuraFlex™ finish; four integral recessed handles
Inter-enclosure Angle 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10
Dimensions (H x W x D) 1223 mm x 414 mm x 614 mm
48.2 in x 16.3 in x 24.2 in
Net Weight (each) 82.6 kg (182 lb)

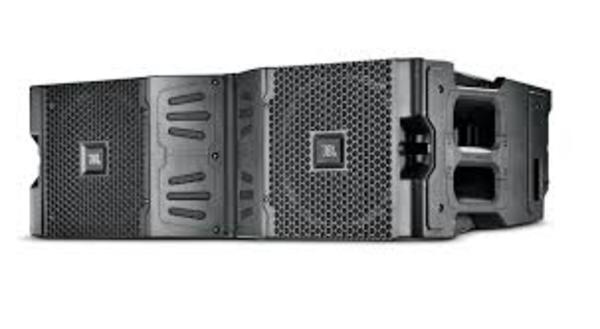

Vtx V20

JBL VTX V20 Dual 10" Line Array Loudspeaker

Speakers

$175/ Day

Features
  • Differential Drive Technology
  • 4th generation advanced high frequency waveguide
  • Small Format Version of Patented D2 Dual Compression Driver
  • ASM Suspension System
  • V5 System Integration

Specifications
System Type 3-Way High Directivity Line Array Element with D2 Technology
Frequency Response (-10dB) 60 Hz – 20 kHz (Preset: VTX V20)
Horizontal Coverage (-6 dB) 105 degrees nominal (300 Hz - 16 kHz)
Maximum Peak Output 139 dB (Preset: VTX V20)
System Amplification Crown Audio I-Tech HD
Nominal Impedance Active:
LF: 2x 8 ohms
MF: 8 ohms
HF: 8 ohms

Passive:
LF: 16 ohms
MHF: 8 ohms
LF Driver (2) JBL 2161H 10-inch Neodymium Differential Drive® woofer
MF Driver (4) JBL 2164H 5-inch Neodymium mid-range woofer
HF Driver (3) JBL 2415K D2 Dual Diaphragm, Dual Voice Coil, Neodymium Compression Drive
Enclosure Cast aluminum front baffles and HF waveguide, Finnish birch plywood; black DuraFlex™ finish, integral recessed handles
Inter-enclosure Angle 0, 0.5, 0.75, 1, 1.5, 2, 2.5, 3, 4, 5, 7.5, 10, 12.5
Dimensions (H x W x D) 280 mm x 911 mm x 402 mm
11 in x 35.9 in x 15.8 in
Net Weight (each) 40 kg (88 lbs)

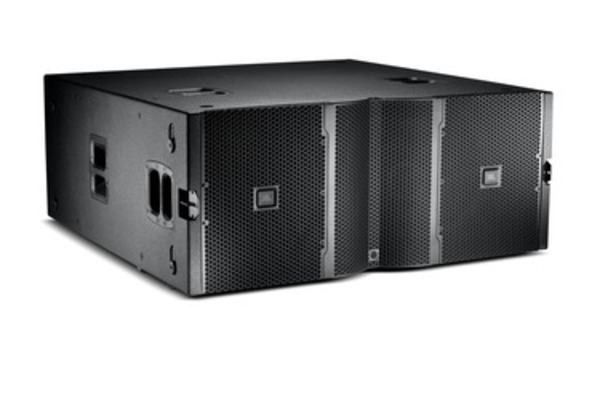

JBL G28

JBL VTX G28 Dual 18" Subwoofer, Ground Stack-Only,

Speakers

$125/ Day

Features
  • JBL’s patented Differential Drive® technology
  • Crown VRack DSP and Amplification
  • JBL HiQnet Performance Manager™ System

Specifications
System Type Ground Stack-Only, Cardioid-Arrayable, Dual 18-inch Subwoofer
Frequency Response (-10dB) 22 Hz - 80 Hz (Preset: VTX G28)
Coverage Omnidirectional or Cardioid
Maximum SPL (1m) 140 dB (Preset: VTX G28 80)
System Amplification Crown Audio I-Tech HD
System Impedance 2x 8 ohms
LF Driver (2) JBL 2269H 18-inch Neodymium Differential Drive® woofer
Enclosure Finnish birch plywood, Black DuraFlexTM finish, ten integral recessed handles
Dimensions (H x W x D) 1211 mm x 493 mm x 1211 mm
47.7 in x 19.4 in x 47.7 in
Net Weight (each) 92.5 kg (204 lb)

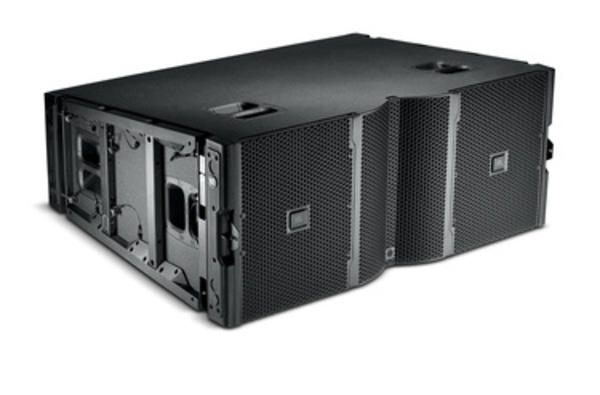

JBL S28

JBL VTX S28 Dual 18" Subwoofer, Suspendable

Speakers

$125/ Day

Features
  • 2269H Differential Drive®, Dual Neodymium Magnet, Dual Voice Coil, Direct Cooled™ dual 18” transducers
  • Reverse-Cardioid Arrayable with convenient front-facing NL4 connector and OEM factory presets for cardioid operation
  • Compatible with VTX V25 suspension - S28 can be suspended at the top or in the middle of V25 arrays to extend the effective low frequency line length
  • BSS® Audio OmniDriveHD V5 Processing for use with Crown Audio ITechHD or VRack and control via JBL HiQnet Performance Manager™
  • Companion subwoofer for VTX V20 or VTX V25-II

Specifications

System Type Full Size Suspendable, Cardioid-Arrayable, Dual 18" Subwoofer with Ultra Long Excursion Transducers
Frequency Response (-10dB) 29 Hz - 90 Hz (Preset: VTX S28 80)
Coverage Omnidirectional or Cardioid
Maximum Peak Output 139dB (Preset: VTX S28 80)
System Amplification Crown Audio I-Tech HD
System Impedance 2x 8 ohms
LF Driver (2) JBL 2269H 18-inch Neodymium Differential Drive® woofer
Enclosure Finnish birch plywood, Black DuraFlex finish, ten integral recessed handles
Inter-Enclosure Angles 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10
Dimensions (H x W x D) 1222 mm x 493 mm x 926 mm
48.1 in x 19.4 in x 36.5 in
Net Weight (each) 83.0 kg (183 lb)

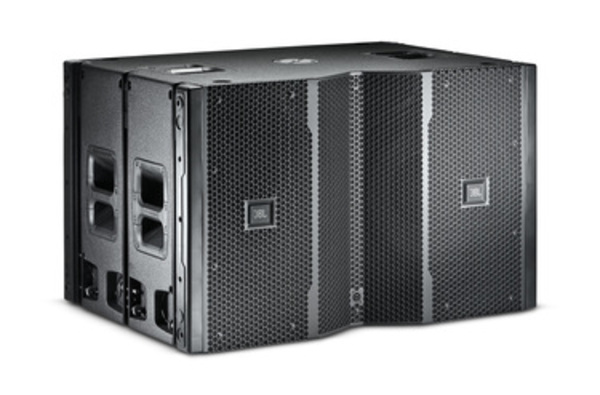

JBL VTX S25

JBL VTX S25 Dual 15-inch Subwoofer, Suspendable

Speakers

$100/ Day

Features
  • Differential Drive Technology
  • V5 System Integration

Specifications

System Type Suspendable, Cardioid-Arrayable, Dual 15" Subwoofer with Ultra Long Excursion Transducers
Frequency Response (-10dB) 26 Hz – 100 Hz (Preset: VTX S25 80)
Coverage Omnidirectional or Cardioid
Maximum Peak Output 139dB (Preset: VTX S25 80)
System Amplification Crown Audio I-Tech HD
Nominal Impedance 2x 8 ohms
LF Driver (2) JBL 2269H 18-inch Neodymium Differential Drive® woofer
Enclosure Finnish birch plywood, Black DuraFlex finish, ten integral recessed handles
Dimensions (H x W x D) 566 mm x 909 mm x 630 mm
22.3 in x 35.8 in x 24.8 in
Net Weight (each) 61.8 kg (136 lbs)

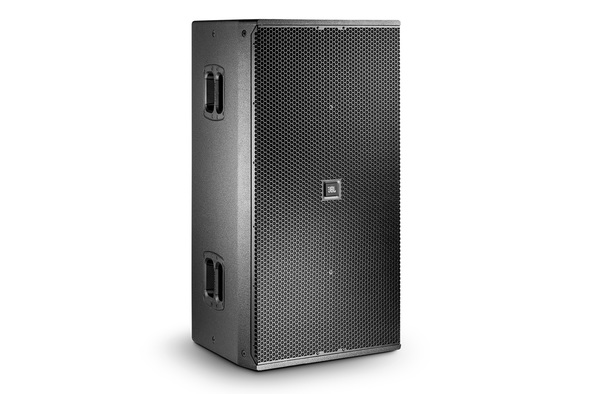

JBL F35

JBL VTX F35 Dual 15" 3-Way Loudspeaker

Speakers

$125/ Day

Features
  • High output 3-way enclosure featuring the D2 Dual Diaphragm Dual Voice Coil high frequency compression driver in a light-weight trapezoidal enclosure
  • Differential Drive™, Dual Neodymium Magnet, Dual Voice Coil, Direct Cooled™ MF and LF cone transducers
  • Multiple M10 attachment points facilitate a variety of suspension options
  • V5 Processing for use with Crown Audio I-Tech HD series amplifiers

Specifications
Frequency Response (-10dB) 39 Hz - 18 kHz
Coverage Pattern (-6dB) /64: 60° Horizontal x 40°Vertical/95: 90° Horizontal x 50°Vertical
System Input Power Rating LF: 2 x 800 W Continuous (IEC / 100 hour)MF: 270 W Continuous (IEC / 100 hour)HF: 100 W Continuous (IEC / 100 hour)
Maximum Peak Output *2 /64: 143dB (Preset: F35/64 FR)/95: 143dB (Preset: -F35/95 FR)
System Processing Crown Audio I-Tech HD SeriesCrown Audio I-Tech 4x3500HD
Nominal Impedance LF = 2 x 8 ohms
MF = 8 ohms
HF = 8 ohms
LF Driver 2 x 2265H, 254 mm (15 in) diameter, dual 76 mm (3 in) diameter voice coil, NDD®, Direct Cooled™
MF Driver 1 x 2169H, 203 mm (8 in) dia., 76mm (3 in) Dual Voice Coil, Neodymium Differential Drive®, Direct Cooled™
HF Driver 1 x D2430H, D2 dual diaphragm, dual 76mm (3 in) diameter voice coil
Enclosure 18 mm, 11-ply Finnish birch plywood; black DuraFlex™ finish; integral recessed handles
Grille Powder Coated 14 gauge hex-perforated steel with acoustically-transparent black cloth backing
Input Connectors Neutrik® Speakon® NL-8 (2x): LF1: 1± | LF2: 2± | MF: 3± | HF: 4±
Dimensions (H x W x D) 1051.5 mm x 568.9 mm x 528.3 mm (41.4 in x 22.4 in x 20.8 in)
Net Weight (each) 52.6 kg (116 lbs)
System Type High Performance Dual 15” 3-Way Loudspeaker with 60 x 40 degree coverage
Suspension / Mounting Integrated M10 mounting points

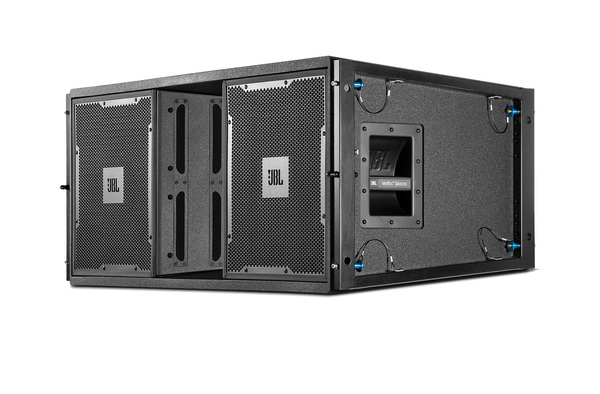

JBL VT4889

JBL Vertec VT4889 Dual 15" Line Array Loudspeaker

Speakers

$185/ Day

Features
  • Advanced construction techniques and hybrid materials provide exceptionally rigid, lightweight
  • enclosure construction
  • Advanced technology components: Differential Drive®, neodymium magnet, dual voice coil, Direct CooledTM cone transducers for low weight and high output
  • Industry’s smallest, lightest, most powerful 1.5˝ exit, 3˝ diaphragm high- frequency compression driver
  • Proprietary waveguides couple to create precision HF vertical slot aperture
  • Radiation Boundary Integrator® (R.B.I.): Patented technology integrates output of individual bandpass elements
  • Rugged DuraFlex™ exterior finish; weatherized components
  • Interated S.A.F.E.™ suspension system: premium heat-treated alloys provide rigid, reliable hanging arrays
Specifications
Frequency Range 40 Hz - 18 kHz (-10 dB):
Frequency Response 45 Hz - 16 kHz (± 3 dB)
Continuous Power Rating 2000W LF1400W MF, 225W HF
Sensitivity 99 dB LF, 102 dB MF, 116 dB HF (1W/1m)
Nominal Impedances 2 x 8 ohms LF, 8 ohms MF, 16 ohms HF
Dimensions (w x h x d) 1214 mm x 489 mm x 546 mm(47.8" x 19.3" x 21")
Weight 72.6 kg (160 lb)

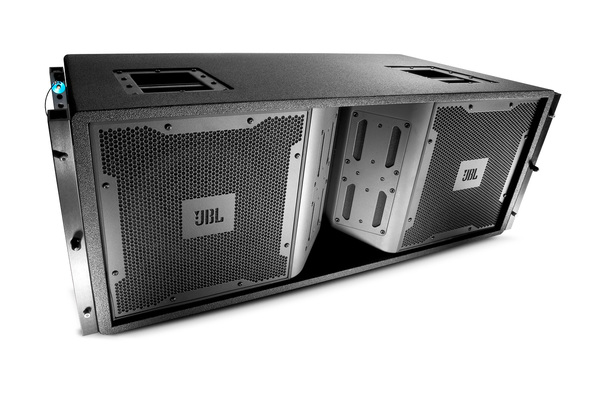

JBL VT4888

JBL Vertec VT4888 Dual 12" Line Array Loudspeaker

Speakers

$150/ Day

Features
  • Advanced technology components: Differential Drive®, neodymium magnet, dual voice coil, Direct Cooled cone transducers for low weight and high output.
  • Direct Cooled™ cone transducers for low weight and high output.
  • HF Waveguide units couple to create precision vertical slot aperture.
  • Radiation Boundary Integrator® (RBI): Patented technology integrates output of individual bandpass elements.
  • Advanced construction techniques using PlyMax® provide exceptionally rigid, lightweight enclosure construction.
  • Rugged DuraFlex™ exterior finish; weatherized components.
  • Patented, integrated S.A.F.E.™ suspension system: premium heat-treated alloys provide high-strength, reliable hanging arrays.
  • Pre-engineered to accept optional JBL DrivePack® amplified electronics package. Rear-panel mechanical attachments and electrical connections ensure upgrade path to self-powered system.
  • For use in stand-alone arrays or in combination with other VERTEC® system models.

Specifications
Frequency Range 48 Hz - 18 kHz (-10dB)
Frequency Response 60 Hz - 16 kHz (± 3 dB)
Continuous Power Rating 2000W LF, 600W MF, 150W HF
Sensitivity 98 dB LF, 102 dB MF, 114 dB HF (1W/1m)
Nominal Impedances 2 x 8 ohm LF, 8 ohm MF, 16 ohm HF
Horizontal Coverage 90 degrees nominal, 250 Hz - 16 kHz (-6dB)
Dimensions (w x h x d) 990.6 mm x 355.6 mm x 508 m (39 in x 14 in x 20 in)
Weight 51.3 kg (113 lb)

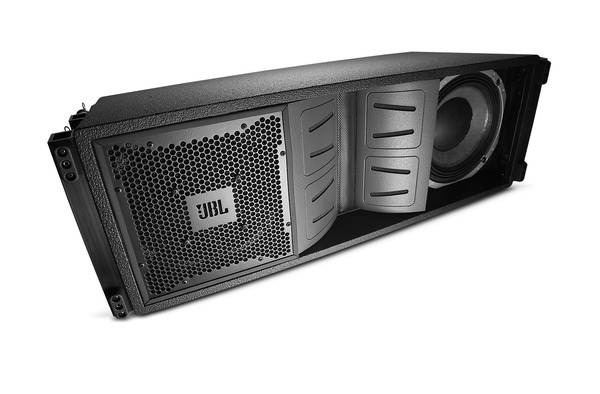

JBL VT4886

JBL Vertec VT4886 Dual 6" Compact Line Array Loudspeaker

Speakers

$100/ Day

Features
  • A true 3-way system, unique to the subcompact category
  • Highest component density in its class, highest SPL output in its class
  • Variable curvature vertical (0-15 degrees) or modular, constant curvature horizontal line array
  • Integrated Mid/High waveguide provides precise vertical wavefront control and optimized 110 degree
  • horizontal dispersion
  • Four midrange transducers with Thermomaster® cooling and Radiation Boundary Integrator® technology
  • Low frequency diffraction absorber eliminates cavity resonance and cabinet edge diffraction effects
  • Flexible installation accessories and dedicated OEM factory presets provide unparalleled application versatility

Specifications
Frequency Range 65 Hz - 20 kHz (-10 dB)
Frequency Response 75 Hz- 18 kHz (+/- 3 dB)
Continuous Power Rating 900W
Horizontal Coverage Angle 110 degrees nominal (averaged 250 Hz - 16 kHz) (-6 dB)

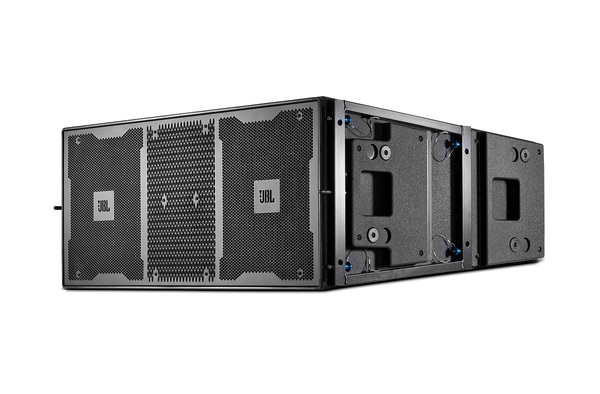

JBL VT4880A

JBL Vertec VT4880A Dual 18" Subwoofer

Speakers

$100/ Day

Features
  • Advanced, Ultra Long Excursion Components: Differential Drive® Neodymium Magnet, Dual Voice Coil, Direct Cooled™ cone transducers
  • Advanced Construction Techniques and PlyMax™ panels provide exceptionally rigid, lightweight enclosure
  • Rugged DuraFlex™ exterior finish; weather-resistant components
  • Integrated Suspension System: premium heat-treated alloys. Hingebars included.

Specifications
Frequency Range 25 Hz – 160 Hz (-10 dB)
Frequency Response 29 Hz – 120 Hz (±3 dB)
Continuous Power Rating 4000W
Sensitivity 95dB (1W/1m)
Nominal Impedances 2 x 8 ohms
Dimensions (W x H x D ) 1229 mm x 493 mm x 860 mm(48.3" x 19.4" x 33.9")
Weight 83.9 kg (185 lb)

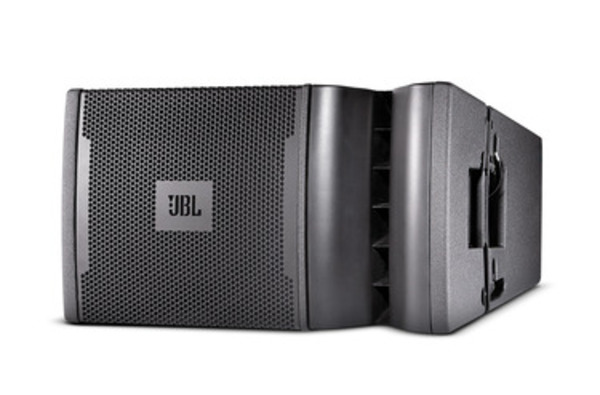

JBL VRX932

JBL VRX932 12" Line Array Loudspeaker

Speakers

$100/ Day

Features
  • JBL’s exclusive neodymium magnet Differential Drive® woofer for high-power capacity and light-weight.
  • VRX932LA-1 features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
  • Constant Curvature waveguide for unprecedented array coherence.
  • Dual angle pole socket for aiming flexibility. One or two speakers may be mounted to a 35 mm pole or
  • tripod stand.
  • Integral rigging hardware for simple connection of enclosures and optional array frame. Arrays of up to six enclosures may be flown.
  • Array Configuration Selector permits “array shading” in passive mode.

Specifications
Power Rating 800 W / 1600 W / 3200 W
Frequency Response (-10dB) 57 Hz - 20 kHz
Dimensions (H x W x D) 343mm x 597mm x 376mm (13.5in x 23.5in x 14.8in)
Frequency Response (±3 dB) 75 Hz - 20 Hz
Coverage Pattern 100 x 15 nominal
Crossover Modes Bi-amp / passive, externally switchable
Crossover Frequency 132 dB SPL peak 1.2 kHz
Maximum SPL (1m) 130 dB SPL peak (passive mode)
LF: 130 dB HF: 139 dB
Sensitivity Passive: 95 dB SPL Bi-amp LF: 95 dB SPL Bi-amp HF: 114 dB SPL
LF Driver 1 x JBL 2262H 305 mm (12 in) Differential Drive® woofer with neodymium magnet, dual voice-coils, and dual magnetic gaps.
HF Driver 3 x JBL 2408J, 38 mm (1.5 in) voice-coil, neodymium compression driver
Nominal Impedance Passive = 8 ohm
Bi-amp LF = 8 ohm
Bi-amp HF = 8 ohm
Active Tunings Tunings available at www.jblpro.com
Enclosure 18 mm, 11-ply birch plywood
Suspension / Mounting Optional VRX932LA-AF line array frame kit
Finish Black DuraFlex™ finish
Grille Power coated, black, 16-guage perforated steel with with acoustically transparent foam
Inputs Neutrik® Speakon® NL-4 (x2)
Net Weight (each) 21 kg (46 lb)
Optional Accessories VRX932LA-AF: Suspension array frame SS2-BK: Tripod speaker stand SS3-BK: Satellite speaker pole,41 in (1041 mm) SS4-BK: Adjustable satellite speaker pole to be used with the SRX718S only
Outputs 1 x XLR
System Type Constant Curvature 12" Two-Way Line Array System

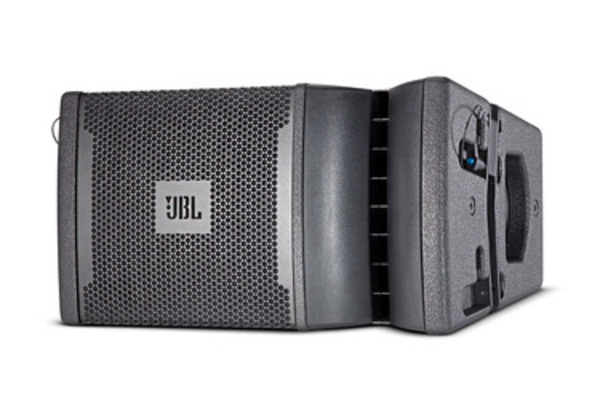

JBL VRX928

JBL VRX928 8" Line Array Loudspeaker

Speakers

$75/ Day

Features
  • Constant Curvature Array - The waveguide mounts two compression drivers on a continuous arc enabling them to work together acoustically as if they were a single driver.
  • Amplitude Shading- Convenient series of switches on each enclosures that controls the output of each high frequency section in the array.
  • Suspension and Rigging.
  • Dual Angle Pole Socket - JBL's dual angle pole sockets allow great flexibility in aiming the enclosure
  • (not on - WH version)
  • Differential Drive® Woofer.

Specifications
Power Rating 400 W / 800 W / 1600W
Frequency Response (-10dB) 70 Hz - 20 kHz
Dimensions (H x W x D) 230mm x 420mm x 270mm (9.0in x 16.5in x 10.5in)
Coverage Pattern 100 x 15 nominal
Frequency Response (±3 dB) 85 Hz - 19 Hz
Crossover Modes Bi-amp / passive,
Crossover Frequency 2.0 kHz
Net Weight (each) 12.7 kg (28 lb)
Inputs Neutrik® Speakon NL-4 (x2)
Outputs 1 x XLR
Enclosure Duraflex coated plywood
System Type Constant Curvature 8" Two-Way Line Array System
Maximum SPL (1m) 122 dB SPL peak (passive mode) LF: 122 dB (bi-amp mode) HF: 128 dB (bi-amp mode)
Nominal Impedance Passive = 8 ohm
Bi-amp LF = 8 ohm
Bi-amp HF = 16 ohm
LF Driver 1 x 200 mm (8 in) Differential Drive® woofer
HF Driver 2 x 25 mm (1.0 in) neodymium compression driver
Suspension / Mounting Dual 36 mm pole socket included. Suspension requires optional VRX-SMAF line array frame kit or M10 eyebolts.

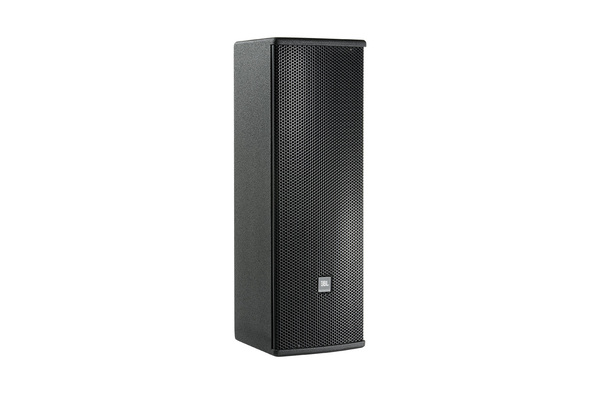

JBL AC 28

JBL AC28 Dual 8" 2-Way Loudspeaker

Speakers

$50/ Day

Features
  • 1” Exit Compression Driver with PT™ Waveguide
  • 205 mm (8 in) LF transducer
  • Compact enclosure
  • 750W Program
  • Dual Neutrik NL4 connectors plus screw terminal
  • FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
  • Attachment points for optional U-bracket, third part OmniMount® type bracket and stand mount accessory

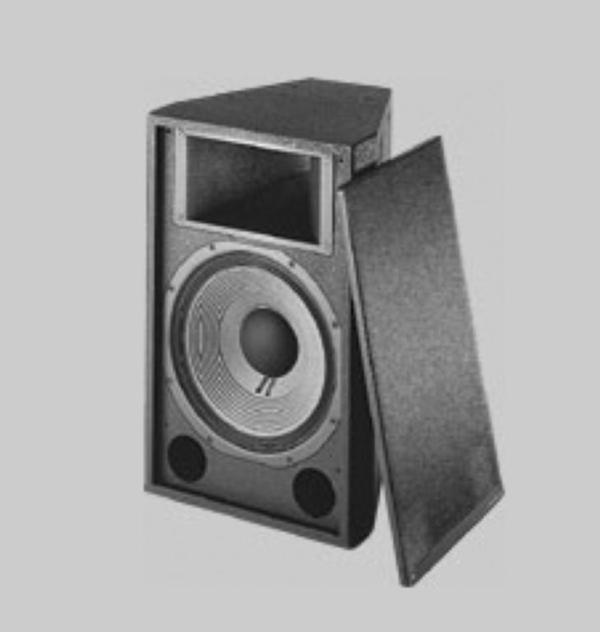

JBL 4892

JBL 4892 2-Way Loudspeaker

Speakers

$75/ Day

Specifications:
SYSTEM:
Frequency Response 1 ( ± 3 dB): 50 Hz - 18 kHz
Sensitivity 2: 98 dB (1 W, 1 m)
High Frequency: 300 W at 8 ohms
Low Frequency: 600 W at 8 ohms
Nominal Coverage: 45° horizontal, 35° vertical
LOW FREQUENCY TRANSDUCER:
Nominal Diameter: 355 mm (14 in)
Nominal Impedance: 8 ohms
Power Rating: 600 W AES, 50 Hz to 500 Hz
2400 W peak
Voice Coil: 100 mm (4 in) edgewound aluminum ribbon
Features: Ultra linear, neodymium magnet motor structure
Vented Gap Cooling
HIGH FREQUENCY TRANSDUCER:
Throat Diameter: 38 mm (1½ in) exit
Nominal Impedance: 8 ohms
Power Rating: 75 W AES, 1 kHz to 10 kHz
300 W peak
Diaphragm: 100 mm (4 in) pure titanium diaphragm
Voice Coil: 100 mm (4 in) edgewound aluminum ribbon
Features: Neodymium magnet motor structure
HIGH FREQUENCY HORN:
Type: Optimized Aperture Flat-Front Bi-Radial
Material: Die cast aluminum
Coverage: 45° horizontal, 35° vertical
ENCLOSURE:
Type: Vented, 45° included angle trapezoid
Material: 19 mm (¾ in), 13 ply hardwood
Flying System: S.A.F.E. -JBL proprietary, modular, certified
Finish: Black textured paint
Grille: 16 ga. perforated steel, foam backed
Connectors: Parallel 8 pin Neutrik pins 1 ± LF, Pins 3 ± HF
Features: Handles, 35 mm (1 3/8 in) aluminum tripod socket

JBL Control 25

JBL Control 25 Compact Indoor/Outdoor Background/Foreground Loudspeaker

Speakers

$25/ Day

Features
  • Components: 5.25 in Polypropylene coated woofer, .75 in Titanium coated horn loaded tweeter.
  • Built-in InvisiBall® mounting hardware*.
  • Weather resistant enclosure and transducers.
  • Readily paintable.
  • 90° x 90° high frequency horn.
  • Overload Protection Circuitry.
  • Sensitivity: 88 dB SPL, 1W, 1m
*Patents pending worldwide

Specifications
Frequency Range 80 Hz to 16 kHz (-10 dB)
Power Capacity 150 W Continuous Program Power; 75 W Continuous Pink Noise
Sensitivity 88 dB SPL, 1 W, 1m
Directivity Factor (Q) 5.3 dB
Directivity Index (DI) 7.2 dB
Nominal Impedance 8 ohms
Crossover Frequency 3.0kHz
Frequency LF Driver 135mm (5.25 in) Polypropylene cone w/ WeatherEdge
HF Driver 19mm (.75 in) Titanium coated polycarbonate
Enclosure Material HIPS (High Impact Polystyrene)
Overload Protection Full-Range power limiting to protect network and transducers
Terminations Spring terminals, accepts banana plug
Environmental Conforms to Mil Spec 810 for humidity, salt spray,temperature& UV. IEC 529 IP-X4 splashproof rating
Dimensions (H x W x D) 236 x 188 x 149 mm (9.3 x 7.4 x 5.8 in)
Net Weight (each) 2.3 kg (5 lb)
Shipping Weight (ea) 5 kg (11 lb)
Included Accessories Invisiball Assembly
Optional Accessories MTC-25V: For vertical columnar orientation of up to 3 loudspeakers extension of the woofer surround that MTC-25/23H: For horizontal splaying of two speakers. Three brackets array up to six loudspeakers in a 360° array. MTC-28/25CM: Ceiling-mount adapter. MTC-25SSG: Stainless Steel Grille for harsh environments. Available in silver, black (-BK) or white (-WH) MTC-25WMG: WeatherMax™ Stainless Steel Grille protects against driving precipitation. Available in black or white (-WH) MTC-PC2: Input panel cover protects input terminals in outdoor environments.

JBL VP7315

JBL VP7315/95DP Powered 15 in. 3-way Integrated Loudspeaker System

Speakers

$125/ Day

Features
  • Powered bi-amplified full-range loudspeaker with JBL DrivePack® technology for portable or installed use.
  • 2200 Watts peak output power, 1100 Watts continuous.
  • HiQnet™ compatible; network control.
  • 15-inch Differential Drive® low-frequency driver for extended low-frequency output.
  • 60° x 40°coverage.
  • Stylized and ergonomically designed powder-coated die cast aluminum handles.
  • Six 3-inch fly track suspension points and fourteen M10 fittings (optional detachable flying fittings and forged eye bolt kits available).

Specifications
Frequency Range 34 Hz to 20 kHz (-10 dB)
Frequency Response 43 Hz to 18 kHz ( ± 3 dB)
Coverage Pattern 60°x 40° rotatable waveguide
Directivity Factor (Q) 15.85
Directivity Index (DI) 12 dB
Maximum Peak Output1 138 dB SPL 1m
Low Frequency Section JBL 2265G, 381 mm (15 in) dia.,76 mm (3 in) Dual Coil neodymium Differential Drive®, Direct Cooled
Bandpass Nominal Impedance 4 ohms
Mid Frequency JBL CMCD-82H, 200mm (8in) Dual Coil Differential® transducer
High Frequency JBL2452H-SL, 100mm (4in) titanium damped diaphragm, 1.5in. exit
Waveguide JBL PT-K64-MHF
DP2 Internal Amplification Output (at nominal load) 2200 Watts Peak, 1100 Watts Continuous
DP2 Output (Continuous IEC shaped pink noise into rated load impedance) 750LF/350HF Watts
DP2 Output Section 2-Channel, Class I
Audio Input Connector XLR with loop-through
Signal Processing DSP Based, resident in Input Module
System Management DSP based limiters for mechanical and thermal protection
AC Power Operating Range Auto Select 90-132VAC/216-264VAC, 50/60Hz
AC Line Voltage 50/60 Hz, Auto-Detect; 120V/240V (-15%, +10%)
AC Input Connector Neutrik PowerCon
AC Loop-thru Neutrik PowerCon
AC Current Requirement 6A per system at 120V, 3A per system at 240V
Box Construction 5/8in. multi-ply exterior grade Baltic birch. Internally braced. Black DuraFlex™ finish.
Suspension System 6 standard air-cargo 3 in. track and 12 M10 fittings
Grille 14 Gauge Black powder-coated perforated steel with foam backing
Dimensions (H x W x D) 914.4 x 528.3 x 624.8mm(36 x 20.8 x 24.6 in)
Net Weight 44 kg (97 lb)

JBL VP7215

JBL VP7125DP Powered 15 in. 2-way Integrated Loudspeaker System

Speakers

$100/ Day

Features
  • Powered bi-amplified full-range loudspeaker with JBL DrivePack® technology for portable or installed use.
  • 2200 Watts peak output power, 1100 Watts continuous.
  • HiQnet™ compatible; network control.
  • 15-inch Differential Drive® low-frequency driver for extended low-frequency output .
  • 60° x 40°coverage.
  • Stylized and ergonomically designed powder-coated die cast aluminum handles.
  • Six 3-inch fly track suspension points and fourteen M10 fittings (optional detachable flying fittings and forged eye bolt kits available).

Specifications
Frequency Range 45 Hz to 20 kHz (-10 dB)
Frequency Response 60 Hz to 18 kHz ( ± 3 dB)
Coverage Pattern 60°x 40° rotatable waveguide
Directivity Factor (Q) 15.8
Directivity Index (DI) 12 dB
Maximum Peak Output1 137 dB SPL 1m
Low Frequency Section JBL 2265G, 381 mm (15 in) dia.,76 mm (3 in) Dual Coil neodymium Differential Drive®, Direct Cooled
Bandpass Nominal Impedance 4 ohms
High Frequency JBL2452H-SL, 100mm (4in) titanium damped diaphragm, 1.5in. exit
DP2 Internal Amplification Output (at nominal load) 2200 Watts Peak, 1100 Watts Continuous
DP2 Output (Continuous IEC shaped pink noise into rated load impedance) 750LF/350HF Watts
DP2 Output Section 2-Channel, Class I
Audio Input Connector XLR with loop-through
Signal Processing DSP Based, resident in Input Module
System Management DSP based limiters for mechanical and thermal protection
AC Power Operating Range Auto Select 90-132VAC/216-264VAC, 50/60Hz
AC Input Connector Neutrik PowerCon
AC Loop-thru Neutrik PowerCon
AC Current Requirement 6A per system at 120V, 3A per system at 240V
Box Construction 5/8in multi-ply exterior grade Baltic birch. Internally braced. Black DuraFlex™ finish.
Suspension System 6 standard air-cargo 3 in. track and 14 M10 fittings
Grille 14 Gauge Black powder-coated perforated steel with foam backing
Dimensions (H x W x D) 765.3 x 447.6 x 523.5 mm(30.13 x 17.62 x 20.61 in.)
Net Weight 38.6 kg (85 lb)

JBL VP 7118 SUB

JBL VPSB7118DP Powered 18 in. Integrated Loudspeaker System

Speakers

$100/ Day

Features
  • Powered 18" Sub-woofer Loudspeaker System with JBL DrivePack® technology for portable or installed use.
  • 3600 Watts peak power, 1800 Watts continuous.
  • HiQnet™ compatible; network control.
  • 18-inch Differential Drive® low-frequency driver for extended low-frequency output.
  • Stylized and ergonomically designed powder-coated die-cast aluminum handles.
  • Eight 3-inch fly track suspension points and twenty-four M10 fittings (optional detachable flying fittings and forged eye bolt kits available).

Specifications
Frequency Range 29 Hz to 165 Hz (-10 dB)
Frequency Response 39 Hz to 145 Hz ( ± 3 dB)
Maximum Peak Output 129dB SPL 1m
Low Frequency Section JBL 2268G, 457 mm (18 in) dia., 76 mm (3 in) Dual Coil, Differential Drive®, Direct Cooled
Bandpass Nominal Impedance 4 ohms
DP1 Internal Amplification Output (at nominal load) 3600 Watts Peak, 1800 Watts Continuous
DP1 Output Section 1-Channel, Class I
Audio Input Connector XLR with loop-through
Signal Processings DSP Based, resident in Input Module
System Management DSP based limiters for mechanical and thermal protection
AC Power Operating Range Auto Select 90-132VAC/216-264VAC, 50/60 Hz
AC Line Voltage 50/60 Hz, Auto-Detect; 120V/240V (-15%, +10%)
AC Input Connector Neutrik PowerCon
AC Loop-thru Neutrik PowerCon
AC Current Requirement 6A per system at 120V, 3A per system at 240V
Box Construction 5/8in. multi-ply exterior grade Baltic birch. Internally braced. Black DuraFlex™ finish.
Suspension System 8 standard air-cargo 3 in. track and 24 M10 fittings
Grille 14 Gauge Black powder-coated perforated steel with foam backing
Dimensions (H x W x D) 514.4 x 701.8 x 812.8 mm(20.25 x 27.63 x 32 in.)
Net Weight 54 kg (129 lb)

KARRAY KR200S

K-Array KR200S High-tech Ultra-Light Powered Loudspeaker System

Speakers

$250/ Day

Features

  • High tech ultra-light powered system
  • Unique performance-to-size ratio
  • High power 124dB continuos, 130 dB peak
  • Fitted with integral handles
  • Line array emission wavefront
  • DSP on-board with 16 dedicated presets
  • Ultra fast set-up and dismantling system

The K-array Redline Series KR200s is a compact and efficient portable powered PA/stage monitor system ideal for Concert Halls, Theatre, Houses of Worship and AV presentations. It is comprised of the KL18ma self-powered subwoofer with an additional DSP controlled powered output and 35mm pole adaptor designed for a KR200 ultraslim line array satellite speaker.

KARRAY KR100S

K-Array KR100S High-tech Ultra-light Powered Loudspeaker System

Speakers

$175/ Day

FEATURES

  • Unique performance-to-size ratio
  • High power 124dB continuos, 130 dB peak
  • Fitted with integral handles
  • Line array emission wavefront
  • DSP on-board with 16 dedicated presets
  • Ultra fast set-up and dismantling system


The K-array Redline Series KR100s is a compact and efficient portable powered PA/stage monitor system ideal for Concert Halls, Theatre, Houses of Worship and AV presentations. It is comprised of the KL12ma self-powered subwoofer with an additional DSP controlled powered output and 35mm pole adaptor designed for a KR100 ultra slim line array satellite speaker, which contains 16 x 2” neodymium transducers in a strong 5.5 cm x 7 cm, 4.5 Kg stainless steel chassis.

K-Array KR400S

K-Array KR400S High-tech Light Powered Loudspeaker System

Speakers

$350/ Day

Features

  • High tech ultra-light powered system
  • Unique performance-to-size ratio
  • High power 132dB continuous, 138dB peak
  • Fitted with integral handles
  • Line array emission wavefront
  • DSP on-board with 16 dedicated presets
  • Remote PC control software (RS485)

The KR400S is a high performance ultra-slim powered two way system designed for small to medium wavefront systems, in both mobile and installed applications. The KR400S includes two KR400 satellites and 2 KL21ma powered subwoofers.

Nexo ID24T

Nexo ID24T 2-Way Compact Loudspeaker

Speakers

$50/ Day

KEY FEATURES
  • Compact, high-powered sound reinforcement speaker
  • Measures just 309mm W x 132mm H x 233mm D
  • Rotatable horn for 60° x 60°, 90° x 40°, 120° x 40° or 120° x 60° HF coverage (according to horns)
  • dedicated Touring version with Speakon connectivity and rigging points
SPECIFICATIONS
Frequency Range 95Hz – 20kHz (+/- 6dB)
Sensitivity (1W / 1m) 100dB SPL Nominal
Peak SPL Level (1m) 126dB Peak
HF Dispersion Selection (according to horns) Selection of: 60°x60°, 90°x40°
120°x40°, 120°x60°
Nominal Impedance 16Ω
Recommended Amplification per box 200 to 500W
Components LF: 2x4" – Long excursion – Neodymium magnet
HF: 1" voice coil ½" throat – Neodymium magnet
Height x Width x Depth 132 x 309 x 233mm (5.2" x 12.2" x 9.2")
Weight 6 Kg (13 lbs)
Material Water-resistant Polyurethane
Finish Black: Raw sandblasted polyurethane
White: Structural paint
Grille Stainless steel, Black paint
Rigging 6x points for quick rigging, M10 threaded insert
NEXO ID S210T

NEXO ID S210T Dual 10" Subwoofer

Speakers

$50/ Day

SPECIFICATIONS
  • Frequency Range 43Hz - 130Hz (+/-3dB)
  • Sensitivity (1W / 1m) 103 dB SPL Nominal
  • Peak SPL Level (1m) 131dB Peak
  • Crossover Frequencies 85Hz / 120Hz
  • Nominal Impedance 2Ω
  • Recommended Amplification 800W to 1300W
FEATURES
Components 2x10" Long excursion
Height x Width x Depth 285 x 1050 x 550 mm, (11.2" x 41.3" x 21.7")
Weight 37 kg (82lbs)
Material Finnish birch plywood
Finish Black structured paint
Rigging 4x M6 inserts, M20 flange
Hex And Lincoln

MSI Custom Hex Bi-Amp Coaxial Monitor Speaker (10", 12" 15")

Speakers

$75/ Day

Features,

  • MSI Custom Shop Designed and Built in the U.S.A. in Baltimore, Maryland
  • Coaxial Design
  • Available in 10", 12" and 15" LF
  • Bi-Amp
  • Dual Angle
  • High Power
  • U-Bracket, Yoke or Pole Mounting

MSI Custom Hex-15 Cut Sheet.pdf

MSI BB21

MSI Custom BB21 21" High-Power Subwoofer

Speakers

$75/ Day

Features:

  • MSI Custom Shop Designed and Built in the U.S.A. in Baltimore, Maryland
  • Birch Construction
  • Line-X Tuff Coating
  • 21" High Power Subwoofer Speaker
  • Integrated Pole Cup Speaker mount.
  • NL4 Speak-on connection
Mp21

MSI Custom Subwoofer Systems

Speakers

Maryland Sound International has a long history of manufacturing the highest quality speakers. Low Frequency High Power Subwoofer speakers are our specialty.

QSC K Series

QSC K Series Powered 2-Ways Loudspeaker

Speakers

$75/ Day

Available in ,8" ,10" and ,12"

Tech Specs
Powered: Yes
Power Configuration: Bi-amped
Channels: 3
LF Driver Size: 10" woofer
HF Driver Size: 1.4" titanium compression driver
LF Driver Power Amp: 1800W
HF Driver Power Amp: 225W
Total Power: 2000W
Inputs: 2 x XLR-1/4" combo (mic/line), 1 x 1/8" (aux stereo in)
Outputs: 2 x XLR (thru), 1 x XLR (mix out)
Frequency Range: 50Hz-20kHz
Frequency Response: 56Hz-20kHz
Maximum Peak SPL: 130 dB SPL @ 1m
Horizontal Coverage Angle: 90 Degrees
Signal Processing: EQ, Delay, Dynamics, User Scene Presets, Crossover
Enclosure Material: ABS plastic enclosure with 18 AWG steel grille
Mounting Options: Pole Mount with 1.37" socket, Floor Wedge, 2 x M10 Fly Points
Power Source: Standard IEC AC cable
Height: 20.4"
Width: 12.6"
Depth: 11.8"
Weight: 32 lbs.
Manufacturer Part Number: K10.2-NA

Shure PSM1000

Shure PSM1000 Dual Channel Wireless I.E.M

In-Ear Monitors

$150/ Day

Tech Specs:

  • Frequency Range: 470-542 MHz
  • Stereo/Mono: Stereo
  • Included Transmitter: P10T
  • Included Receiver: 2 x P10R+
  • Included Earphones: 2 x SE425CL
  • Number of Frequencies: 39 per band
  • Auto Frequency Scan: Yes
  • Operating Range: 300 ft. Line-of-sight
  • Earphone Type: In-ear
  • Earphone Freq Response: 20Hz-19kHz
  • Earphone Cable Length: 64"
  • Transmitter Inputs: 2 x XLR-1/4" combo
  • Transmitter Outputs: 1 x 1/8"
  • Transmitter Dimensions: 1.7" x 19.0" x 13.5"
  • Receiver Output Jack: 1 x 1/8"
  • Receiver Power: 2 x AA batteries, 1 x SB900 Li-ion Rechargeable Pack
  • Receiver Dimensions: 3.9" x 2.6" x 0.9"
  • Receiver Weight: 6.56 oz.
  • Manufacturer Part Number: P10TR+425CL-G10
Shure PSM900

Shure PSM900 Wireless I.E.M

In-Ear Monitors

$75/ Day

Tech Specs
  • Frequency Range: 506-542 MHz
  • Stereo/Mono: Stereo
  • Included Transmitter: P9T
  • Included Receiver: P9RA+
  • Included Earphones: SE425CL
  • Number of Frequencies: 20
  • Auto Frequency Scan: Yes
  • Operating Range: 300 ft. Line-of-sight
  • Earphone Type: In-ear
  • Earphone Freq Response: 20Hz-19kHz
  • Earphone Cable Length: 64"
  • Transmitter Inputs: 2 x XLR-1/4" combo
  • Transmitter Outputs: 2 x 1/4" (loop output)
  • Transmitter Power: 15V DC power supply
  • Transmitter Dimensions: 7.75" x 6.5" x 1.6"
  • Receiver Output Jack: 1 x 1/8"
  • Receiver Power: 2 x AA batteries
  • Receiver Dimensions: 3.3" x 2.6" x 0.9"
  • Receiver Weight: 5.4 oz.
  • Manufacturer Part Number: P9TRA+425CL-G7
Shure PA821

Shure PA821B Wireless IEM Antenna Combiner

In-Ear Monitors

$125/ Day

Tech Specs:
Type: Antenna Combiner
Compatibility: Shure PSM systems UHF 470-865 MHz
Connectivity: 8 x BNC inputs, 2 x BNC A/B in, 1 x BNC AB out, 1 x BNC Main out
Dimensions: 1U rackmount
Manufacturer Part Number: PA821B

PA 821

Shure PA421B I.E.M Antenna Combiner

In-Ear Monitors

$125/ Day

Tech Specs
  • Type: Antenna Combiner
  • Compatibility: Shure PSM 900 (4 x transmitters), Shure PSM 1000 (2 x transmitters)
  • Frequency Range: 470-865 MHz
  • Connectivity: BNC
  • Dimensions: 1U Rackmount
  • Manufacturer Part Number: PA421B
Shure P6 IEM

Shure P6HW Hardwired I.E.M

In-Ear Monitors

$75/Day

Tech Specs:
  • Stereo/Mono: Stereo or Mono
  • Receiver Output Jack: 1 x 1/8"
  • Receiver Power: 2 x AA Batteries
  • Height: 3.9"
  • Depth: 2.6"
  • Width: 0.9"
  • Weight: 0.43 lbs.
  • Manufacturer Part Number: P9HW=
2050IEM

Sennheiser 2000 Series Wireless I.E.M.

In-Ear Monitors

$100/ Day

Tech Specs
  • Frequency Range: 558-626 MHz
  • Stereo/Mono: Stereo
  • Included Transmitter: SR 2050 IEM
  • Number of Frequencies: Up to 3000
  • Auto Frequency Scan: Yes
  • Transmitter Inputs: 4 x XLR-1/4" combo, 2 x RJ-45
  • Transmitter Outputs: 2 x 1/4" (headphones), 4 x 1/4" (loop out L/R)
  • Transmitter Power: Standard IEC AC cable
  • Transmitter Dimensions: 19" x 8.5" x 1.7"
  • Manufacturer Part Number: 508626
Sennheiser G3 IEM

Sennheiser G3 Wireless I.E.M.

In-Ear Monitors

$75/ Day

Technical Data
Frequency range
516...558 MHz / Power supply unit US
566...608 MHz / Power supply unit US
516...558 MHz / Power supply unit EU
Compander: HDX
Audio-XLR connector: 2 x XLR-3 jack
Presets: 16
Frequency response : 25 - 15000 Hz
THD, total harmonic distortion: < 0,9 %
Signal-to-noise ratio: > 90 dB(A)
RF frequency range:516...865 MHz
RF output power: 10/30 mW
Transmission/receiving frequencies: 1680
Switching bandwidth: 42 MHz
Peak deviation: +/- 48 kHz
In compliance with: ETS 300422, ETS 300445, CE, FCC
Operating time: 4 - 6 h
Modulation: FM, MPX-stereo
Antenna connector: BNC
Headphone connector: > 100mW (32 Ω)
Input voltage range: + 22 dBu max
Audio-Output-Power: 100 mW (32 Ω)
Operating voltage (stand alone): 12 V DC nom.
Transmitter Dimensions: 212 x 202 x 43 mm
Weight: 1100 g
Receivers Dimensions: 82 x 64 x 24 mm
Weight~ 160 g

Fischer Amps

Fischer Amps Hardwired I.E.M.

In-Ear Monitors

$75/ Day

Features:

  • Two direct symmetric XLR inputs (no special cable required)
  • Much better sound than wireless in ear systems
  • Switch-over from stereo to mono-mix mode
  • 2 x 40mW power with limiter
  • Control for volume and pan/mix
PWS HELICAL

Professional Wireless I.E.M. Antenna Systems

In-Ear Monitors

$125/ Day

Specs:
Frequency Range: 460-900 MHz
Compatible with all UHF wireless systems
Circular Polarization, rigid helix
Impedence: 50 ohms
Beamwidth: 63°
RF Connector: BNC (F)
Use for TX or RX
Product Dimensions: (13.6 x 13.6 x 13.25) inches

Professional Wireless GX-8, GX4, and Helical Antenna

Sennheiser AC3000

Sennheiser AC3000 I.E.M Antenna Combiner

In-Ear Monitors

$125/ Day

Specs:
Impedance 50 Ω
Attenuation 0 dB (± 1 dB)
Power Consumption 90 W (maximum)
RF Frequency Range 500 to 870 MHz
Power Supply 12 VDC
Antenna Connector BNC
Current Consumption Maximum 7.5 A
Operating Temperature 14 to 113°F (-10 to +45°C)
Dimensions 17.1 x 8.4 x 1.7" (436.0 x 215.0 x 44.0 mm)
Weight Approximately 8.8 lb (4.0 kg)

Shure Axient Dual

Shure Axient Digital Dual Channel Wireless Microphone System

Microphones (Wireless)

$175/ Day

Tech Specs
Configuration: 2-channel Receiver
Analog/Digital: Digital
Receiver Frequency Range: 470-616 MHz
Range: 330 ft.
Antenna Type: Detachable, 4 x BNC
Receiver Type: Rackmount
Rack Spaces: 1U
Front Panel Display: Yes
Displays: High Res TFT LCD display
Frequency Response: 20Hz-20kHz
Dynamic Range: 120dB (A weighted, XLR), 130dB (A weighted, Dante)
Outputs: 2 x XLR (analog), 1 x XLR (AES3), 2 x 1/4", 1 x 1/4" (headphones)
Data I/O: 2 x Ethernet (Dante), 2 x Ethernet (control 1/2 POE)
Word Clock: In/Out (thru/75 ohm termination)
Height: 1.73"
Width: 19"
Manufacturer Part Number: AD4DUS=-A

Shure Axient quad

Shure Axient Digital Quad Channel Wireless Microphone System

Microphones (Wireless)

$175/ Day

Tech Specs:
Configuration: 4-channel Receiver
Analog/Digital: Digital
Number of Receivers: 1
Receiver Frequency Range: 470-616 MHz
Range: 330 ft (without Quadversity enabled)
Antenna Type: Detachable, 4 x BNC
Receiver Type: Rackmount
Rack Spaces: 1U
Front Panel Display: Yes
Displays: High Res TFT LCD display
Frequency Response: 20Hz-20kHz
Dynamic Range: 120dB (A weighted, XLR), 130dB (A weighted, Dante)
Outputs: 2 x XLR (analog), 2 x XLR (analog/AES3), 4 x 1/4", 1 x 1/4" (headphones)
Data I/O: 2 x Ethernet (Dante), 2 x Ethernet (control 1/2 POE)
Word Clock: In/Out (thru/75 ohm termination)
Height: 1.73"
Width: 19"
Manufacturer Part Number: AD4QUS=-A

Shure UHFR

Shure UHFR Dual Channel Wireless Microphone System

Microphones (Wireless)

$125/ Day

Shure UR24D+/SM58-H4 Specs
System
Type of System Dual Handheld UHF, Rackmount Type Receiver
RF Carrier Frequency Range H4 / 518 - 578MHz
Approx. Working Range 500 feet (150 meters) typical conditions
Overall Frequency Response 40Hz to 18kHz +/- 1dB
Signal-to-Noise Ratio Ultimate Quieting (ref. 45 kHz deviation)
# Of Channels 2400 Selectable Frequencies Across 60 MHz Bandwidth
# Of Simultaneous Systems Up to 60 Preset Compatible Systems/Band (140 w/Multiple Bands, Region Dependent)

Receiver
Type of Receiver UR4D Dual Receiver - Diversity
Type of Outputs XLR 3-pin: Mic / Line Switchable, Balanced Low-Z with Ground Lift Switch
1/4" Phone: 200 ohms
USB: Computer Interface
RJ-45: Ethernet Network Interface
Headphone Monitoring 1/4" Phone with level control dial
Power Requirements 100 to 240 Vac, 50/60Hz
0.8 Amps max.
Battery Type/Approx. Life None - AC power only
Display Backlit LCD: Group and Channel, Frequency, Automatic Transmitter Sync, Receiver name, Output Level, Squelch, Receiver Lock, LCD View, Contrast, ToneKey, Network Parameters
Mounting Options Rack Mount Hardware (Included)
Antenna Type Two band dependent antennas
Dimensions 1.72 x 19 x 14.39" (44 x 483 x 366mm) (HxWxD)
Weight 11 lbs. (5 kg)
Transmitter
Type of Transmitter UR2 UHF Frequency Agile Handheld (x2)
Type of Input Connector not applicable, handheld transmitter
Type of Microphone SM58
Polar Pattern Cardioid
Interchangeable Mic Heads No
Battery Type/Approx. Life 1.5V AA Alkaline Batteries x2
9.5 hours (low power)
6 hour (high power)
Mute Switch not specified by manufacturer
Level Control Gain: -10dB to +20dB
Antenna Type Flexible Antenna
Display Backlit LCD
Dimensions 10.27 x 2" (261 x 51mm) (Length x Diameter)
Weight 12.6 oz (356 g)

Shure RF HHLD

Shure Wireless Microphone Capsules

Microphones (Wireless)

$50/ Day

Various Microphone capsules for Shure Wireless RF Transmitters.

KSM8, KSM9, Beta87, Beta58, Sm58

Shure Wireless capsulesShure Wireless capsulesShure Beta87 CapShure Wireless capsulesShure Wireless capsules

Shennheiser EM3732II

Sennheiser SKM5200 Wireless Microphone System

Microphones (Wireless)

$125/ Day

Sennheiser WIreless MicsSennheiser WIreless Mics

Sennheiser WIreless MicsSennheiser WIreless Mics

System Specs :

Wireless Transmission Analog UHF
Diversity True Diversity
RF Frequency Band 470 to 638 MHz
RF Bandwidth 168 MHz
Frequency Step Size 5 kHz
Max Operating Range 300' / 91.4 m (Typical)
Latency
Modulation Wideband FM
Receiver
Form Factor Tabletop
Mounting Options Rackmount (with Optional Hardware)
Rackmount Size 1 RU (Full Rack)
Antenna 2 x External, BNC (Rear-Mount)
Number of Audio Channels 2
Audio I/O 4 x XLR 3-Pin Male Balanced Output
1 x XLR (AES3) 3-Pin Male Balanced Output
1 x 1/4" TRS Female Unbalanced Headphone Output
Gain Range -10 to +18 dB (1 dB Steps)
Frequency Response 40 Hz to 20 kHz
Network I/O 1 x RJ45
Word Clock I/O 1 x BNC Input
1 x BNC Through
Approximate RF Sensitivity 1.5 µV
Squelch Adjustable, 0 to 30 dBμV
Adjacent Channel Isolation >80 dB
Power Requirements AC Input
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Display & Indicators 2 x Backlit OLED (AF Level, Channel, Metering, RF Level, Transmitter Battery Status)
Dimensions 17.2 x 1.7 x 8.5" / 436 x 44 x 215 mm (without Mounting Hardware)
Weight 7.9 lb / 3.6 kg (without Mounting Hardware)

Sennheiser wireless

Sennheiser Wireless Distributed Antenna Systems

Microphones (Wireless)

$125/ Day

Technical Data

Dimensions
356 x 356 x 140 mm
Connector
N (female)
Weight
3.1 Ibs. (1.41 kg)
Gain
8 dBi
Frequency range
3db: 450 - 960 MHz

Omni, CP and Directional Antenna from Sennheiser.

Sennheiser wirelessSennheiser wirelessSennheiser wireless

Shure Wireless Antenna

Shure Wireless Distributed Antenna System

Microphones (Wireless)

$125/ Day

Tech Specs:
Type: 5-way Active Antenna Distribution
Compatibility: VHF, QLX-D, ULX, ULX-D, SLX, BLX4R
Frequency Range: 174-216 MHz, 470-960 MHz, 1492-1525 MHz, 1785-1805 MHz
Connectivity: BNC
Manufacturer Part Number: UA845UWB

Passive and Active, Omni and Directional Systems Available

Shure Wireless AntennaShure Wireless AntennaShure Wireless AntennaShure Wireless Antenna

Freespeak Edge BP
New Item

Clearcom Freespeak Edge Digital Wireless Intercom Beltpack- 5Ghz

Intercom (Wireless)

$100/ Day

Beltpack Featurs:

TFT color display
4 top buttons with individual level control
5 additional programmable buttons
Rotary controls on both sides and up/ down level controls
Master volume control on bottom
Mic and speaker mode
Built-in flashlight
Drop-in and USB-C charging
Connectivity

5 GHz radio frequency
20-27 radio channels (region specific)
Robust radio link works in high multipath or reflective environments
Dual redundant radios
Bluetooth Low Energy (BLE) radio; beltpack pairing and firmware updates over the air
Low latency audio: < 35ms (60ms beltpack to beltpack)
Wi-Fi coexistence
5 GHz Scanner Mode – built in scanning tool for selecting channels
AES256 shared key encryption
Mechanical

Curved shape fits to body
IP54 rating for wet and dusty conditions

Freespeak Edge BP

Freespeak Edge TCVR
New Item

Clearcom Freespeak Edge Digital Wireless Intercom Transceiver- 5Ghz

Intercom (Wireless)

$125/ Day

Transceiver Features:

LED status indicators on top and bottom of transceiver
External omnidirectional antennas for the transceiver
Dual redundant radios per beltpack and transceiver
Separate radios for RF and radar scanning
Wall-mount plate
Microphone stand mounts (metric and imperial threads)
Tripod spigot mount
Connectivity

Supports 10 FreeSpeak Edge beltpacks per transceiver
Supports up to 64 transceivers on an Eclipse HX matrix system with 64 port E-IPA-HX card
Robust radio link works in high multipath or reflective environments
Wi-Fi coexistence
Standalone mode for site survey and demo
AES256 shared key encryption
Dual network connections
etherCON RJ45 network connection
High speed SFP fiber cage
Power-over-Ethernet (PoE) up to 330ft (100m)
Daisy-chaining up to three locally powered transceivers
Mechanical

IP53 rating for wet and dusty conditions

Clearcom Freespeak Base

Clearcom Freespeak-II Digital Wireless Intercom Base Station- 1.9 Ghz

Intercom (Wireless)

$250/ Day

Features:


Supports both 1.9GHz and 2.4GHz FSII beltpacks on a single base station
Routing and configuration of up to 25 FreeSpeak II beltpacks
Four 2-wire ports with call signal, auto nulling (Clear-Com and RTS)
Supports 2 transceivers natively and up to 10 transceivers via FSII splitter
Fiber transceiver connections, supports two fiber-enables FSII splitters
Multi-mode user interface has monitoring, setup and main station modes with assignable soft keys
GPIOs allow assignment to trigger cue lights, tally or radios
Matrix and partyline configurations support up to 12 channels and/or groups
DECT Sync ports for optimizing co-located systems
RF Audio Filter improves system performance in hard RF environments
Browser-based Core Configuration Manager (CCM) with InSite for real-time statistics, beltpack and transceiver diagnostics, and functionality such as Remote Mic Kill
Text messaging from CCM to wireless beltpacks

Clearcom Freespeak Beltpack

Clearcom Freespeak-II Digital Wireless Intercom Beltpack- 1.9 Ghz

Intercom (Wireless)

$75/ Day

Features:
Typical indoor range: 300 ft (90 m), outdoor range: 800 ft (240 m)
1.9 and 2.4 GHz beltpacks operate on a single system
Up to 65 – 90 beltpacks on a single system
Encoder Volume Swap between A&C and B&D
“Listen Again” message replay
Simple 2-channel partyline operation to 5-channel intercom on the same beltpack
Over-the-air beltpack registration
18+ hour battery life or USB port for continuous operation
XLR-4M headset connector
IP53 rating for wet and dusty conditions
Built-in flashlight

Clearcom Freespeak TCVR

Clearcom Freespeak-II Digital Wireless Intercom Transceiver- 1.9 Ghz

Intercom (Wireless)

$125/ Day

Features:

FreeSpeak II 1.9GHz Transceiver
Uses existing FSII base, E-QUE-HX cards, and FSII splitter hardware
Supports 5 FSII-BP19 beltpacks per FSII-TCVR-19 transceiver
Supports systems with up to 65-90 beltpacks when mixed with FSII-24-TCVRs
Green LED status indicator on top and bottom
Mic stand or wall mount orientation (metric and imperial threads)
IP53 rating for wet and dusty conditions

Clearcome Median Matrix
New Item

Clearcom Eclipse HX-Median Digital Matrix Intercom System

Intercom

$1500/ Day

Specs:

6RU Card Frame
Slots for 2 CPU cards, 7 interface cards and 8 interface modules
Up to 448 internal ports
Dual-redundant CPU-HX processors fitted as standard
Dual-redundant power supplies fitted as standard
Alarms: Frame temperature, PSU failure
8 general purpose inputs and 8 relays
Expandable to become a multi-frame system with redundant non-blocking fiber
Intelligent trunking between systems over telecom lines (E1/T1), IP (LAN, WAN or Internet), Analog or MADI
Seamless integration with FreeSpeak II and FreeSpeak Edge
Fully-compatible with Clear-Com V-Series Iris and I-Series panels
Supports EHX Software (Eclipse HX Configuration)

Clearcom V24
New Item

Clearcom V-Series Iris 24-key Intercom Panel Panel

Intercom

$175

Features:

V-Series Iris 24-key 2RU Rotary Panel
Color OLEDs for quick and easy key differentiation
AES67 low latency audio IP connections to Eclipse HX matrix frames via E-IPA-HX card
Individual key menus help ease of use and assignment
Individual rotary audio level controls for personal mixes
Fast key assign from pre-defined scroll lists or using numeric pad
Optional repositioning of Reply key
Optional additional Reply key for busy positions
Vertical font display option
International 10-character alpha-numeric fonts: Cyrillic, Hangul, Kanji, Katakana and Arabic
Digital Signal Processing (DSP) for audio routing, Dynamics, IFB routing and local loudpseaker dimming
Built-in Interfaces: Matrix (direct connect), Matrix (Ethernet/IP), GPIO, Aux Audio, 2nd Headset
Multi-channel Matrix Connections: Direct connect (1 main + 2 aux), IP (3 channels)

Clearcom V12E
New Item

Clearcom V-Series Iris 12-key Intercom Extension Panel

Intercom

$100/ Day

Features:

V-Series Iris 12-key 1RU Rotary Expansion Panel
Color OLEDs for quick and easy key differentiation
AES67 low latency audio IP connections to Eclipse HX matrix frames via E-IPA-HX card
Individual key menus help ease of use and assignment
Individual rotary audio level controls for personal mixes
Fast key assign from pre-defined scroll lists
Optional repositioning of Reply key
Optional additional Reply key for busy positions
Vertical font display option
International 10-character alpha-numeric fonts: Cyrillic, Hangul, Kanji, Katakana and Arabic
Digital Signal Processing (DSP) for audio routing, Dynamics, IFB routing and local loudpseaker dimming
Built-in Interfaces: Matrix (direct connect), Matrix (Ethernet/IP), GPIO, Aux Audio, 2nd Headset
Multi-channel Matrix Connections: Direct connect (1 main + 2 aux), IP (3 channels)

Clearcom V12
New Item

Clearcom V-Series Iris 12-key Intercom Panel

Intercom

$175/ Day

Features:
V-Series Iris 12-key 1RU Rotary Panel
Color OLEDs for quick and easy key differentiation
AES67 low latency audio IP connections to Eclipse HX matrix frames via E-IPA-HX card
Individual key menus help ease of use and assignment
Individual rotary audio level controls for personal mixes
Fast key assign from pre-defined scroll lists or using numeric pad
Optional repositioning of Reply key
Optional additional Reply key for busy positions
Vertical font display options
International 10-character alpha-numeric fonts: Cyrillic, Hangul, Kanji, Katakana and Arabic
Digital Signal Processing (DSP) for audio routing, Dynamics, IFB routing and local loudpseaker dimming
Built-in Interfaces: Matrix (direct connect), Matrix (Ethernet/IP), GPIO, Aux Audio, 2nd Headset
Multi-channel Matrix Connections: Direct connect (1 main + 2 aux), IP (3 channels)

Clearcom Agent IC
New Item

Clearcom Agent IC Mobile Intercom Panel

Intercom

$ 25/ Day

Agent-IC® Mobile App
When your core intercom user group needs to include remote users away from the main facility, providing additional communication access could be a challenge and cost-prohibitive.

Agent-IC mobile applications provides you with a cost-effective and fast-to-deploy solution that is complements traditional intercom systems such as the Eclipse HX digital matrix, Encore analog partyline and HelixNet digital partyline intercom systems. Agent-IC apps operate on smart devices over 3G, 4G, LTE and WiFi networks.

Features and/or Benefits
Remote Intercom Access
Allow contributing team members to connect remotely and effortlessly to core intercom users.

Secure and Seamless Connections
Connect securely and confidently to multiple IP networks over 3G, 4G and WiFi with NSA (National Security Administration) approval.

Fast and Easy Deployment
Download app from the Apple iTune Store (for iOS devices) or Google Playstore (for Android devices) and be connected to the host Eclipse HX system or LQ Core Configuration Manager. Access is granted by the System Administrator.

Clearcom LQ8
New Item

Clearcom LQ-R4W8 Series IP Intercom Interface

Intercom

$175/ Day

Features:
8-Port 1RU Panel for 4-wire Interfacing
Intercom-over-IP: routing intercom and audio signals over IP networks
2-wire powering, termination and auto-nulling
4-wire ports support data and audio for Clear-Com Eclipse HX and Drake 4000 panels
Connect up to 6 LQ devices together over LAN, WAN, Internet
Remotely connect up to 8 IVC-32-HX or E-IPA-HX ports per LQ device
Supports up to 8 Agent-IC clients per LQ device (license required)
Supports up to 8 SIP client connections per LQ device (license required)
Connects to HelixNet via HLI-ET2 over LAN or WAN
Add up to 24 ports of audio I/O per HelixNet Main Station by connecting to LQ Series
Adjustable bandwidth on a per port basis
Connectors: Network/LAN: EtherCON/RJ45 (female); 4-wire Audio I/O: EtherCON/RJ45 (female)
Network-friendly OPUS Codec
Browser-based Core Configuration Manager application
Networked Control Events for multi-unicast one-to-many routing

Clearcom LQ2
New Item

Clearcom LQ-2W2 Series IP Intercom Interface

Intercom

$100/ Day

Features:
2-Port Portable Unit for 2-Wire Interfacing
Intercom-over-IP: routing intercom and audio signals over IP networks
Connect up to 6 LQ devices together to create standalone partyline intercom group
Supports up to 8 Agent-IC clients per LQ device (license required)
Supports up to 8 SIP client connections per LQ device (license required)
Connects to HelixNet via HLI-ET2 over LAN or WAN
Add up to 24 ports of audio I/O per HelixNet Main Station by connecting to LQ Series
Adjustable bandwidth on a per port basis
2-wire powering, termination and auto-nulling
Female and Male XLR connectors at each port
Network-friendly OPUS Codec
Browser-based Core Configuration Manager
Networked Control Events for multi-unicast one-to-many routing

Clearcom Helixnet Master

Clearcom Helixnet Digital Partyline Intercom Master Station

Intercom

$250/ Day

Features:

HelixNet System Master
6 HMS can link over LAN and WAN
Supports up to 64 endpoints on HelixNet system
12 partyline channels. Expandable to 24 channels via optional license
Main Station

Easy to use CCM™ browser configuration
Fast front panel control and configuration
Plug-and-go with auto discovery
Central upgrades from main station
User Station

Headset or hands-free support with speaker and mic
4 Keysets freely assignable to channels
All Talk, Stage Announce, RMK and Program Audio level controls
Connectivity

2 Powerlines for distribution of Ethernet to HelixNet user stations via XLR cables
3 Expansion slots for HLI modules: Ethernet, fiber, 2-wire and 4-wire ports
Program Audio input and Stage Announce output
4 Contact closure inputs and outputs
LQ Integration Options

LQ® linking for high density 2-wire, 4-wire and GPIO expansion
Agent-IC® natively integrated via optionally licensed LQ
SIP/VoIP integrated via optionally licensed LQ

Clearcom Helixnet Beltpack

Clearcom Helixnet Digital Partyline Intercom Beltpack

Intercom

$75/ Day

Features:

Beltpack

Backlit keys with high visibility OLED displays for ease of use
2 Keysets freely assignable to system channels
Stacked keys allow unique combination of channels
Independent Program Audio control
USB call signal flasher
Binaural controls on HXII-BP-X5
Connectivity

Powerline connection via XLR cable
Ethernet Network port with PoE
Mechanical

Multiple mounting options
Rugged, lightweight polycarbonate enclosure
IP53
The HelixNet System

Networked Intercom System
Flexible cabling
12 partyline channels; expandable to 24 channels via optional license
Program Audio distribution with independent level controls
Effortless Management

Easy to use CCM browser configuration
Fast front panel control and configuration
Plug-and-go with auto discovery
Central upgrades from main station

Clearcom Helixnet Desktop

Clearcom Helixnet Digital Partyline Intercom Desktop Speaker Station

Intercom

$100/ Day

Features:

Speaker Station

Easy to use front panel with OLED displays
Headset or hands free support with speaker and mic
2 Keysets freely assignable to system channels
Shift page for 4-channel operation
Program Audio level control
Display swivels allowing optimal viewing angles
Connectivity

Powerline terminal plug connection
Ethernet Network port with PoE
Mechanical

4-gang for flush mounting
Optional S-MOUNT for desktop use
The HelixNet System

Networked Intercom System
Flexible cabling
12 partyline channels; expandable to 24 channels via optional license
Program Audio distribution with independent level controls
Effortless Management

Easy to use CCM browser configuration
Fast front panel control and configuration
Plug-and-go with auto discovery
Central upgrades from main station

Clearcom Helixnet Remote

Clearcom Helixnet Digital Partyline Intercom Remote Station

Intercom

$150/ Day

Features:

Remote Station

Easy to use front panel with OLED displays
Headset or hands-free support with speaker and mic
4 Keysets freely assignable to system channels
All Talk, Stage Announce, RMK and Program Audio level controls
Expansion mode for 8-24 channel user stations
Connectivity

Powerline loop-through on XLR
Ethernet Network port with PoE
Program Audio input and Stage Announce output
Contact closure input and output
HelixNet System

Networked Intercom System
Flexible cabling
12 partyline channels; expandable to 24 channels via optional license
Program Audio distribution with independent level controls
Effortless Management

Easy to use CCM browser configuration
Fast front panel control and configuration
Plug-and-go with auto discovery
Central upgrades from main station

Clearcom Headset

Clearcom Intercom Headsets- X4F

Intercom

$25/ Day

Features:

Single-ear premium light-weight headset
High quality dynamic cardioid microphone
20Hz -20KHz frequency response
Choice of earpads: leatherette or foam
Flexible gooseneck microphone positioning
Boom rotation ON/OFF switch for quick microphone muting
Interchangable cabling for easy connector change and repair
Fully serviceable headset
Rugged design

PI INtercom

Production Intercom Master Station

Intercom

$50/ Day

Features:

  • 2 Channels of Clearcom style Intercom Power
  • 3 Xlr connectors Per channel.
  • Supports up to 30 Production Intercom Beltpacks
  • Aux Program Inputs and Outputs
  • On-board Speaker
PI INtercom

Production Intercom Beltpacks- X4M

Intercom

$35/ Day

BP1, BP2, BP1.5 Beltpacks Available

All Beltpacks have XLR 4 Pin Male Connectors

PI INtercomPI INtercomPI INtercom

PI INtercom

Production Intercom Headsets- X4F

Intercom

$10/ Day

Lightweight Intercom Headsets

SMH510, SMH-710, DMH710, DMH320 Headsets Available

PI INtercomPI INtercom

PI HEadsetsPI HEadsets

Lexicon 960L

Lexicon 960L/LARC2 Digital Effects System

Special Effects

$150/Day

Features:
Redefines World-class Reverberation
24-bit/96kHz Processing
Lexicon 3DPM™ Algorithms (3-Dimensional Perceptual Modeling)
True Multi-Channel Surround Sound and Stereo Reverb Processing
LARC2™ Remote Control: 480L-based Intuitive User Interface
Flexible Input and Output Mixing Capabilities
Expandable Audio and Control I/O
Hardware and Software Expandable DSP
Extensive Sonic Palette of Factory Programs
Eight Touch-Sensitive Motorized (auto-nulling) Faders
Assignable Joystick for Surround Panning and Creative Parameter Control
STANDARD CONFIGURATION
Multiple 3DPM DSP Configurations: Stereo, 5.1 Surround, Combined
Eight 24-bit/96kHz Balanced XLR Analog I/O
Four Stereo Pairs of 24-bit/96kHz AES/EBU Digital I/O
MIDI In/Out/Thru
BNC Word Clock Input/Output/Loopthru
CD-ROM Drive for Software Upgrades

TELEX BTR800

Telex BTR-800 UHF Wireless Intercom System- 4 Pack

Intercom (Wireless)

$350/ Day

Features:

Backlit Base Station LCD
Allows the user to easily monitor the beltpack’s status
Base Stations are Table or Rackmountable
Beltpack units contained in a weather and shock resistant die cast magnesium case
ClearScan Function
Automatically finds the best channels on which to operate
Compatible with Audiocom, RTS, Clear-Com, & Other Wired Intercom Types
Convenient IEC Power Connector on the Base Station
Frequency-Agile Base Station & Beltpacks
Full Duplex (Simultaneous Talk & Listen) Operation
Relay Contract Closure on the Base when the SA Button is Pressed
SA (Stage-Announce) Beltpack Control
TR-825 Features Two Audio Channel Binaural Operation in Either Stereo or Mono Mode
Two Channels of Intercom Audio
WTA (Wireless Talk About) Beltpack Control

TW12C

Clearcom TW12C Intercom System Interface

Intercom

$50/ Day

Features:
Clear-Com/RTS System Interface
System isolation for: Clear-Com to Clear-Com, Clear-Com to RTS, RTS to RTS
Eliminates grounding problems between intercom systems
Matches gains between systems
Passes through and translates signaling
Hybrid nulling up to 40 dB
Built-in setup tone
Powered directly from connected intercom system

Waves Plugins

Waves DSP Plug-In Processing Bundles

Special Effects

$125/ Day

Multiple Waves Plug-In Bundles Avaliable.

Native, Sound-Grid Server, Multi-Rack,

Mercury, Platinum, Diamond, Live, WLM, C6 and more!

Waves Plugins

Waves MG Interfaces

Waves SoundGrid MGO/MGB Audio Interfaces

Playback/Record

$100/ Day

Features:

Coaxial (BNC) OR Optical (Fiber) MADI-to-SoundGrid Interfaces
Up to 128 channels
Record to two computers simultaneously
Ultra low-latency: 0.8 milliseconds
Connect with one Ethernet cable (Cat 5e/6)
Run hundreds of real-time plugins (SoundGrid DSP Server and 1GB switch sold separately)
ASIO & Core Audio compliant
Supported sample rates: 44.1, 48, 88.2, 96 kHz
112/128 channel I/O @ 48kHz
56/64 channel I/O @ 96kHz
56 and 64 channel mode support
Supports double wire (48k frame) and single wire (96k frame) @ 96kHz
Clock Synchronization via Word Clock input, MADI (Port 1 or 2), SoundGrid (SoE), Internal
1 SoundGrid RJ45 Ethernet port
Reset switch
DiGiCo Stage Rack channel 57 support

Waves MG InterfacesWaves MG Interfaces

Waves Server

Waves Extreme DSP Server

Special Effects

$150/ Day

Features:
Use your favorite waves plug-ins live
Take studio sound to the stage and back again
Quick and simple setup
A fraction of the cost of hardware
Simple routing: no cabling, no rack mounting, no trucking
Full recall, full control
Set and save presets and snapshots per song and song sections
Group similar racks together (such as all drum channels), and they will share a common group name
Groups are color-coded, making visual identification of similar racks much easier

Optional Equipment Available  : Netgear Network Switches, Mac Mini Remote Computer, Touch Screen Monitors

Smaart

Smaart System Management and Acoustic Analyzation Software Tool

Specialty Items

$125/Day

** Requires Qualified Operator/ Enginner**

Put simply, Smaart is an analyzer – A dual-channel, FFT-based software platform we use in our work as audio engineers to view the frequency content of signals or measure the response of our electrical and electro-acoustic systems. Much like medical instrumentation for doctors, this tool helps us examine our sound systems in detail and diagnose and solve problems. Because Smaart is a software product, it provides the power of extremely powerful hardware-based analyzers in a package that is affordable by an average audio professional.

Sm81

Shure Hardwired Vocal and Instrument Microphones

Microphones

$10/ Day

Shure Hardwired Vocal and Instrument Microphones Avaliable:

  • SM57Pg58s
  • SM58Pg58s
  • SM81Sm81
  • SM86Pg58s
  • BETA56Pg58s
  • BETA57Pg58s
  • BETA58Pg58s
  •  BETA87Pg58s
  • BETA91Pg58s
  • BETA98H/DPg58s
  • KSM8Pg58s
  • KSM9
  • KSM137Pg58s
  • KSM141Pg58s
  • KSM313,Pg58s
  • KSM 32,Pg58s
  •  PG58SPg58s
Sennheiser Mics

Sennheiser Wired Vocal and Instrument Microphones

Microphones

$10/ Day

Sennheiser Hardwired Vocal and Instrument Microphones.

Available models include:

  • e602 Sennheiser Mics
  • e604Sennheiser Mics
  • e609Sennheiser Mics
  • e904Sennheiser Mics
  • e964Sennheiser Mics
  • 421Sennheiser Mics
  • MKE ShotgunSennheiser Mics
Audix Microphones

Audix Hardwired Vocal and Instrument Microphones

Microphones

$10/ Day

Audix Hardwired Vocal and Instrument Microphones

Available Models include:

  • MicroboomAudix Microphones
  • MicroDAudix Microphones
  • D6Audix Microphones
  • D4Audix Microphones
  • D2Audix Microphones
  • SCX25Audix Microphones
  • OM3Audix Microphones
AKG Microphones

AKG Hardwired Vocal and Instrument Microphones

Microphones

$10/ Day

AKG Hardwired Vocal and Instrument Microphones

Available models include:

  • D112D112 AKG
  • D5AKG Microphones
  • C214AKG Microphones
  • C414AKG C414
  • C451AKG Microphones
  • C535AKG Microphones
  • AE2500AKG Microphones
  • CK ShotgunAKG Microphones
DPA Microphones

DPA Vocal and Instrument Microphones

Microphones

$25/ Day

DPA Vocal and Instrument Microphones:

Available Models Include: Adaptors to XLR, Shure or Sennheiser Wireless

  • 4021 Magnetic Piano Mic KitDPA Microphones
  • 4080 Lav MicDPA Microphones
  • 4088 Directional Headset (Beige, Brown, Black)DPA Microphones
  • D:Fine 88 Directional Headset (Beige, Brown, Black)DPA Microphones
  • 4099 Core Instrument Microphone ( Clips for Violin, Cello, Horn, and more.)DPA Microphones
Neuman Microphones

Neumann Hardwired Vocal and Instrument Microphones

Microphones

$25/ Day

Neumann Hardwired Vocal and Instrument Microphones

Available Models Include:

  • KSM105Neuman Microphones
  • KM184Neuman Microphones
  • TLM103Neuman Microphones
  • TLM170Neuman Microphones
XTA DS800

XTA DS800 8 Channel Active Microphone Splitter

Accessories

$50/ Day

Technical Details
  • Isolated Outputs – two identical transformer balanced outputs featuring high voltage isolation, for use as broadcast or recording feeds or wherever independent outputs are required. These connections are wired as follows :- Pin 1 = No Connection, Pin 2 = Hot, Pin 3 = Cold.
  • As Above.
  • Gain Switch – sets the channel gain to +10dB, +20dB, +30dB, +40dB or +50dB. See Mic/Line switch below.
  • Mic/Line – when in the ‘Line’ position the input is padded by 20dB and the input impeadance changes to >10k Ohms.
  • 48V – when selected applies 48V phantom power to the input XLR, for condenser microphones or D.I. boxes. The LED is lit when active.
  • Meter – 5 segment level meter showing the level below clipping. Note: the red LED lights up 6dB’s below actual clipping with a sine wave.
  • Listen – when selected the channel will be summed on to the ‘Solo’ bus, which is routed to the headphone socket and ‘Solo Out’ XLR.
  • Pad (-10dB) – indicates 48V phantom power detected on the output ‘Mon’ XLR, which will automactically switch in a 10dB pad on the channel.
  • Headphone Level – controls the level of the headphone output.
  • Headphone Socket.
  • Power – power indicator.
Whirlwind PB24

Whirlwind PB-24 Press Mult

Accessories

$50/ Day

The Whirlwind PB24 is a passive Pressbox microphone output expander, housed in a rugged steel case, for Whirlwind's PRESSPOWER2 and PRESSMITE active press box line outputs, or any other live press conference or forum application where a line level feed is available.

The PB24 distributes one line level input to multiple mic level outputs. Each output is transformer isolated, providing superior inter-channel isolation and ground lifting, to help eliminate noise problems, and Whirlwind's own TRSP-2 transformers are used throughout.

The PB24 is a professional product in a moderate price range, intended for broadcast and commercial conferencing applications.

Features:

  • 1 to 24 line in/microphone out passive press box expander for broadcast and business conference applications
  • Rugged, all-steel housing with convenient carrying handle
  • Transformer isolation and grounding for each output eliminate inter-channel and RF noise
MSI CUSTOM AMP RACKS

MSI Custom Powersoft K-Series Amplifier Rack

Amplifiers

$75/ Day

MSI Custom Powersoft K-Series Amplifier Rack

System Includes,

3 x Powersoft K3 DSP Amplifiers

3 x Powersoft K8 DSP Amplifiers

Systems configured for 6 Channels of Bi-Amplified Operation

Built-in Presets for MSI Custom Hex Monitors and Subwoofers

3 Phase 120/208V 32Amp Cee Form Style Power connection for use with MSI Custom Power Distribution Systems

MSI C-Trunk

MSI Custom Plastic C-Trunk Truck Pack Case

Specialty Items

$50/ Day

Features:

  • Truck Pack Sizing: 33" x 48" x 36" Rolling Plastic Cable Case
  • Customize-able inserts available.
  • Wooden or Steel Castor Plates available.
  • 4" or 5" castors for Heavy Duty Use.
  • Penn-Elcom Latches and Handles.

MSI C-Trunk

MSI CUSTOM AMP RACKS

MSI Custom Crown ITECH 12000 Amplifier Rack System

Amplifiers

$125/ Day

System Includes,

Shock Mounted Rolling Rack with Slam Latch Doors

6 x Crown ITech12000HD Amplifier

Custom I/O Panel for Speaker, Ethercon Data, Veam Multichannel Analog and AES Digital Audio Connections

Outputs 3 x NL8 SpeakOn Connector

DSP Processing, Program, Configure and Control for all JBL Touring and Live Sound Speakers

120/208V 3 Phase 32 Amp Cee Form Type Connector for connection to MSI Power Distribution System

MSI CUSTOM AMP RACKSMSI CUSTOM AMP RACKSMSI CUSTOM AMP RACKS

MSI CUSTOM AMP RACKS

MSI Custom Crown ITECH 4x3500 HD Amplifier Rack System

Amplifiers

$125/ Day

System Includes,

3 x Crown ITech 4x3500HD Amplifier

4 Channel Analog and 4 Channel AES Digital Inputs

Outputs 3 x NL8 or 6 x NL4 Connections

Gigabit Network Switch

DSP Processing, Program, Configure and Control for all JBL Touring and Live Sound Speakers

120/208V 3 Phase 32 Amp Cee Form Type Connector for connection to MSI Power Distribution System

MSI CUSTOM AMP RACKS

Radial DI BOXES

Radial Direct Boxes and Devices

Devices

$10/ Day

Radial Direct Boxes and Devices

Available Models Include:

  • J48Radial DI BOXES
  • JDIRadial DI BOXES
  • Stereo JDIRadial DI BOXES
  • ProDIRadial DI BOXES
  • ProD2Radial DI BOXES
  • USB DIRadial DI BOXES
  • HOT SHOT A/B/ORadial DI BOXES
  • MIC MUTERadial DI BOXES
Radial Splitters

Radial 56 Channel V12 Splitter System

Accessories

$125/ Day

  • 56 Channel Microphone Splitter System
  • 3 Outputs: Direct, Aux, Transformer Iso
  • Radial/ Jensen Transformers
  • Ram Latch Multi-pin Output Connectors
Radial Splitters

Radial OX8 3 Way Microphone Splitter System

Accessories

$125/ Day

Radial OX8 3 Way Splitter System ( 64 Channel and 96 Channel)

Built from 8 Channel Modular OX8 8Channel Microphone Splitter

Ram-latch IBM Outputs

Features:
Type: Passive Splitter
Channels: 8 channel, 3-way split
Inputs: 8 x XLR (line), 1 x DB-25, 1 x Euroblock terminal
Outputs: 3 x DB-25 (isolated, aux out, direct out), 3 x Euroblock terminal
Height: 1.75"
Width: 19"
Depth: 6"
Weight: 8 lbs.
Manufacturer Part Number: R800 8003 00

Mic Room

Rack Effects, Dynamics, EQ and Processing

Special Effects

$50/ Day

Various Effects, Dynamics, EQ and Processing racks available from many manufactures.

Mic Room
